CAN-2018D/S DeviceNet Slave Module with 8-channel Thermocouple Input

Key Features

  • DeviceNet general I/O slave devices
  • Comply with DeviceNet specification Volume I, Release 2.0 & Volume II, Release 2.0, Errata 5
  • Group 2 Only Server (non UCMM-capable)
  • Support Predefined Master/Slave Connection Set
  • Connection supported:
    • 1 connection for Explicit Messaging
    • 1 connection for Polled I/O
    • 1 connection for Bit-Strobe I/O connection
  • Support DeviceNet heartbeat and shutdown messages
  • Provide EDS file for DeviceNet master interface

CE UKCA FCC RoHS WEEE

Add to quote

£299.00

SKU: 11112760 Categories: ,

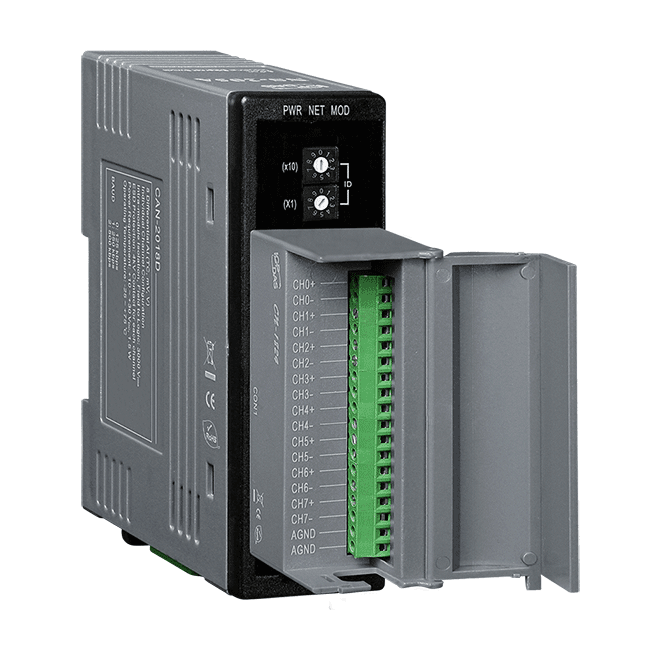

Gray electronic device showing green terminals

Description

DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for the embedded network of the machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipment’s control, remote data acquisition, environmental monitoring, and packaging machines control, etc.

The ICP DAS CAN-2018D follows DeviceNet specification Volume I/II, Release 2.0 and user can access the thermocouple input status and set the configuration via DeviceNet EDS file. The CAN-2018D has 8-channel thermocouple input and it can be used to various applications. By the DeviceNet masters of ICP DAS, you can quickly build a DeviceNet network to approach your requirements.

Applications

The ICP DAS CAN-2000D series works seamlessly with the following DeviceNet masters or gateways:-

  • Allen-Bradley(AB) 193-DNENCAT, 193-DNENCATR
  • OMRON CJ1W-DRM21
  • OMRON CS1W-DRM21-V1
  • OMRON C200HW-DRM21-V1
  • OMRON 3G8F7-DRM21-E

Data Sheets

CAN-2018D_en
