ECAT-2028C EtherCAT SubDevice I/O Module with Isolated 8-channel AO(Current and Voltage Output)

Key Features

  • On the fly processing: EtherCAT
  • Powerful MCU handles efficient network traffic
  • 2 x RJ-45 bus interface
  • Distance between Stations up to 100 m (100BASE-TX)
  • Support daisy chain connection
  • EtherCAT conformance test tool verified
  • Removable terminal block connector
  • LED indicators for the input status
  • 12-bit Analog Output: 8-ch
  • ESD Protection 4 KV Contact for each channel
CE UKCA RoHS WEEE
Add to quote

£299.00

SKU: 11113251 Categories: , , ,

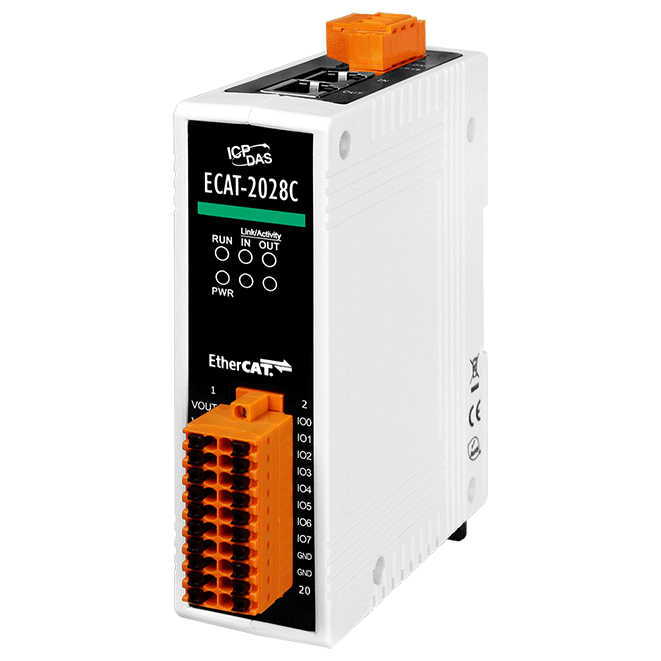

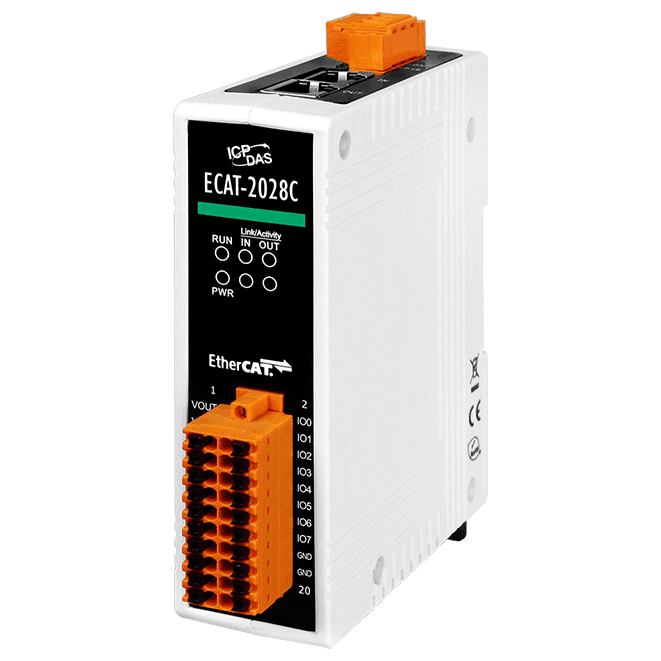

White EtherCAT device with black front panel

Description

The ICP DAS ECAT-2028C is an industrial SubDevice I/O module built in 8-ch 12-bit Analog Output channels. It is equipped with the EtherCAT* protocol and installed by daisy chain connection that provides a more scalable system with fewer wires. Users can obtain the input and output status not only via the process data but also from its LED indicators.

The ECAT-2028C has passed and verified by the conformance test tool, therefore eligible EtherCAT Main Device or configurator can manipulate it simply and implement your various applications easily.

* EtherCAT® is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany.

Applications

  • Semiconductor Tools
  • Metal Forming
  • Packaging
  • Injection Moulding
  • Assembly Systems
  • Printing Machines
  • Robotics

Data Sheets

ECAT-2024C_2028C_en
