ECAT-2072A EtherCAT SubDevice Two-Channel BISS-C/SSI Absolute Encoder Master

Key Features

  • EtherCAT SubDevice
  • Two channels, 48-bit absolute encoder master
  • Transmission interface: SSI,BISS-C (unidirectional)
  • Data encoding mode: Binary, Gray
  • CRC generator polynomial can be customized, and themaximum setting is within CRC-8
  • Support CRC bit Invert
  • Maximum transmission pulse frequency: 10MHz
  • Simultaneous sampling of each channel
  • EtherCAT:
    ‣ 2 x RJ-45 bus interface
    ‣ Supports Free-Run and Distributed Clock (DC) operation modes
CE UKCA RoHS WEEE
Add to quote

£999.00

SKU: 11113344 Categories: , , ,

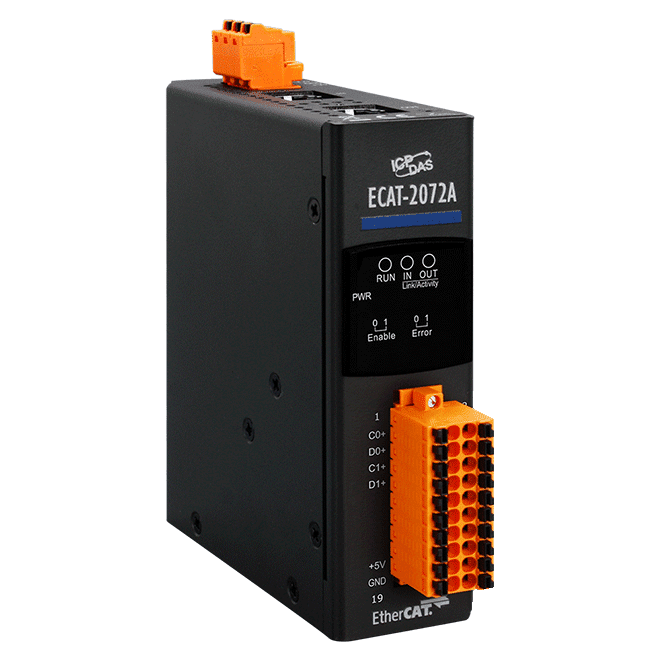

ECAT-2072A control module device

Description

The EtherCAT SubDevice ECAT-2072A is an absolute encoder master. ECAT-2072A provides tow channels. Each channel is independent of each other. It supports two serial transmission interfaces: SSI (Serial Synchronous Interface) & BiSS-C (BiSS Continuous Mode, unidirectional). ECAT-2072A also supports a maximum transmission frequency of 10MHz, a maximum transmission bit of 48bit(Including error bit, warning bit, CRC in BiSS-C mode), and Automatic compensation of cable delays in BiSS-C mode. The maximum cable length supported is 70 meters.

Applications

• Precision Position Measurement

Data Sheets

ECAT-207xA_EN
