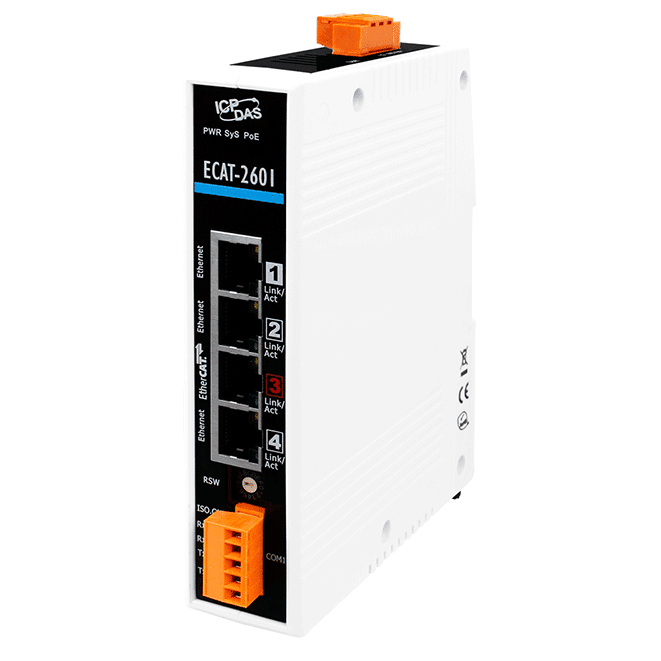

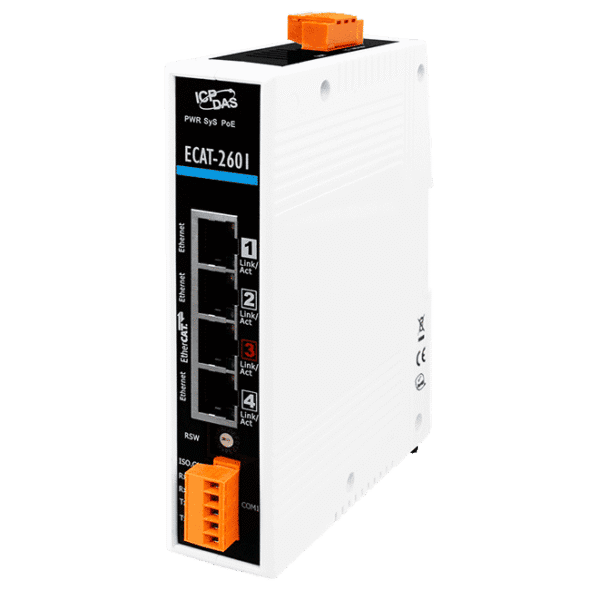

ECAT-2601 Modbus/OPC UA to EtherCAT Main Device Accelerator

ECAT-2601 Modbus/OPC UA to EtherCAT Main Device Accelerator

£399.00

Add to quote

Key Features

  • Built-in EtherCAT MainDevice
    • Supports Free Run mode
    • Connects to SubDevice PDO without requiring an ESI file
    • Supports third-party EtherCAT SubDevices
    • Automatically connects to EtherCAT SubDevices within 10 seconds after power-on
    • Supports user-defined SDO startup entries
    • Minimum cycle time: 125us
  • Supports Modbus Server
  • Supports OPC UA Server
  • Built-in Web Server (HTTP/HTTPS)
CE UKCA FCC RoHS WEEE

Description

The ICP DAS ECAT-2601 is a proven and reliable protocol converter gateway module that enables seamless connectivity between EtherCAT and Modbus/OPC UA networks. Acting as an EtherCAT MainDevice, the ECAT-2601 allows I/O data to be exchanged between the two networks efficiently. It provides a data exchange buffer that enables EtherCAT and Modbus/OPC UA systems to exchange data quickly and easily, supporting a wide range of industrial automation applications.

An OPC UA Server is integrated into the ECAT-2601 firmware, providing a secure, open and reliable mechanism for information exchange. OPC UA supports both horizontal communication between machines and vertical communication between machines and higher-level IT systems, such as SCADA systems and Cloud platforms. Standard OPC UA clients can connect directly to the ECAT-2601 without any customisation, reducing system integration complexity and application development costs.

ECAT-2601_en
