ET-7253 Ethernet I/O Module with 2-port Ethernet Switch and 16-ch DI

Key Features

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP & Modbus UDP Protocols
  • Communication Security
  • 2-port Ethernet Switch for Daisy-Chain Topology
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 ~ +75°C
  • Built-in I/O
    • DI/Counter: 16 Channels

CE UKCA RoHS WEEE

Add to quote

£245.00

SKU: 11112145 Categories: ,

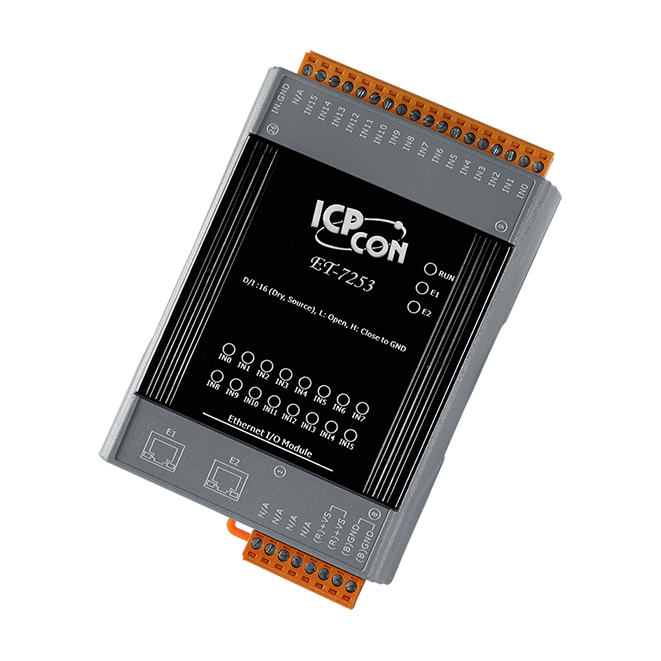

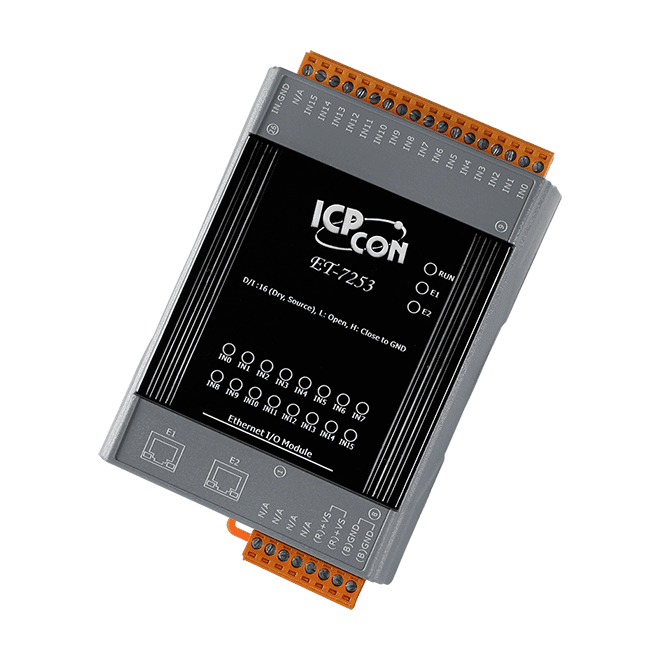

ICP DAS I/O device close-up

Description

The ICP DAS ET-7253 provides 16 dry contact digital input channels. Each input channel can be used as a 32-bit counter. It features optical isolation for 3750 Vrms of transient overvoltage protection but doesn’t provide channel-to-channel isolation. It can safely be used in applications where hazardous voltages are present.

Data Sheets

ET-7x53_PET-7x53_en
