Description

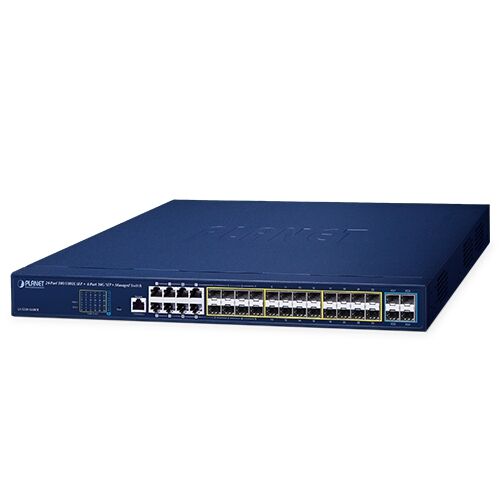

The PLANET GS-5220-16S8CR is a Layer 2+ Managed Gigabit Switch which provides high-density performance and supports Layer 3 static routing with 10Gbps uplink and multiple SFP fiber interfaces delivered in a 1U rugged case design. The administrator can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the 10G network efficiently.

Besides, with 128Gbps switching fabric, the GS-5220-16S8CR can handle extremely large amounts of data in a secure topology linking to backbone or high capacity servers for ISP and enterprise VoIP, video streaming, and multicast applications.

The four SFP+ ports built in the GS-5220-16S8CR boast a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as up to 128Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Each of the SFP+ ports supports 4 speeds, 10GBASE-SR/LR, 2500BASE-X, 1000BASE-SX/LX and 100BASE-FX, meaning the administrator can choose the transmission speed required to extend the network efficiently.

The GS-5220-16S8CR supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in harsh environments.

The GS-5220-16S8CR supports SSHv2 and TLS protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, Dynamic ARP Inspection Protection, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.

Data Sheets

C-GS-5220-16S8CRv2_s
