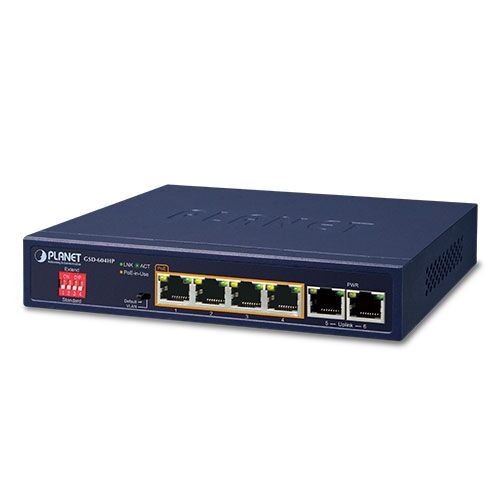

GSD-604HP 4-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Desktop Switch

Key Features

  • 6 10/100/1000BASE-T RJ45 ports with 4-port IEEE 802.3af/at injector function
  • Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
  • Up to 4 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 30 watts for each PoE port
  • Each port supports 54V DC power to PoE powered device
  • 65-watt PoE budget
  • LED indicators for PoE ready/activity and LINK/ACT
  • One 54V DC power jack
  • Fanless design
CE UKCA FCC RoHS WEEE
Add to quote

£99.00

SKU: 11113137 Categories: , ,
Network switch with multiple Ethernet ports

Description

The PLANET GSD-604HP provides four 802.3at PoE+ ports for catering to small-scale IP surveillance or home networks at a lower total cost. With Dual 10/100/1000BASE-T uplink ports, the recorded HD video streams from the 4 PoE IP cameras can be powered by the GSD-604HP and saved in the 4-channel NVR systems or surveillance software to perform comprehensive security monitoring and manage the surveillance system in the LAN or the remote site via Internet.

The GSD-604HP’s advanced features are as follows:

  • Four  PoE+ port with a total budget of 65 watts
  • Two 10/100/1000Mbps uplink ports
  • Port-based VLAN
  • Compact size, fanless design
  • Extended mode

Data Sheets

C-GSD-604HPv3_L
