I-7510 Isolated RS-485 Repeater

Key Features

  • Automatic RS-485 Direction Control
  • Transmission Speed of up to 115200 bps
  • 2-way 3000 VDC Isolation Protection
  • ESD Protection for RS-485 Data Line
  • Power Input, +10 ~ +30 VDC
  • Operating Temperatures, -25 °C ~ +75 °C
  • DIN-Rail Mounting
CE UKCA FCC RoHS WEEE
Add to quote

£83.50

SKU: 11112754 Categories: ,

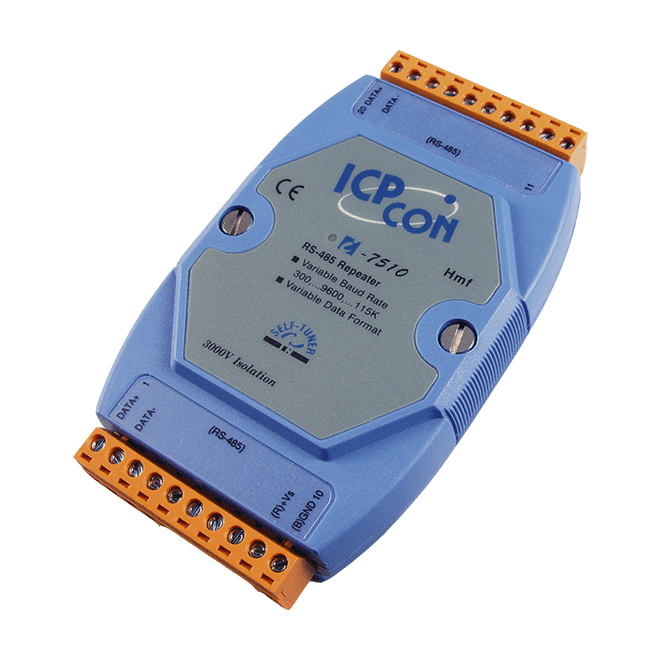

RS-485 data repeater in blue casing

Description

The ICP DAS I-7510 provides 2-way optical isolation between one piece of RS-485 equipment and the rest of the system. It can also be used as a repeater to extend the transmission of an existing network. Additionally, an RS-485 system can be expanded beyond the 256 node limitation imposed by the standard. It can also be used to convert a 2-wire RS-485 signal, and vice versa.

The I-7510AR is exactly the same as the I-7510A, except for the isolation side. The isolation side of the I-7510A is located in the input interface circuit, but the isolation side of the I-7510AR is located in the input and output interface circuit. In other words the I-7510AR is 3-way isolation repeater module.



Data Sheets

I-7510_en
