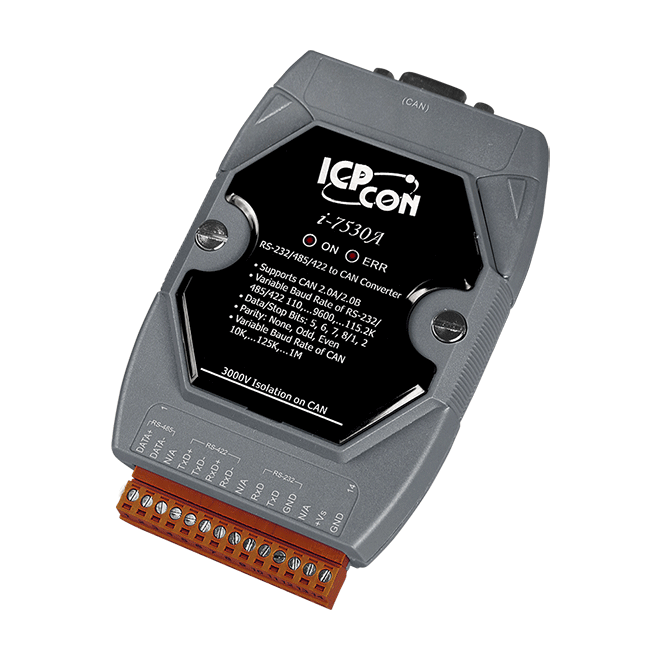

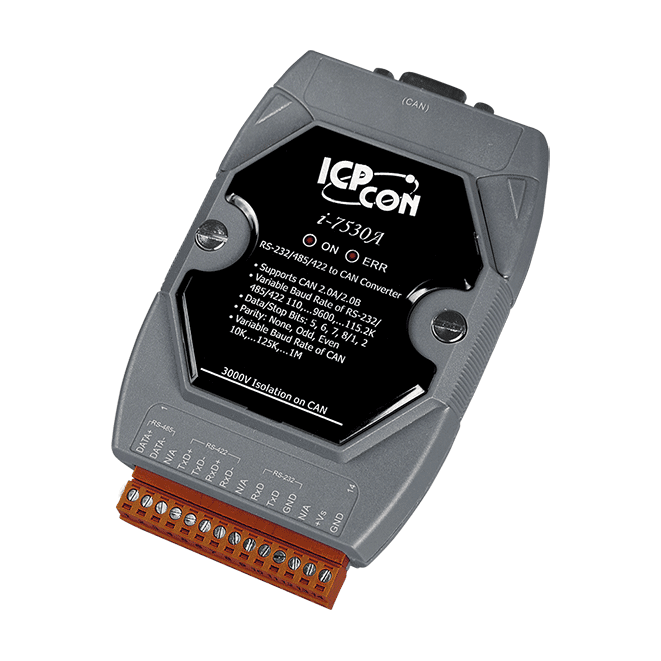

I-7530A-G RS-232/422/485 to CAN Converter

Key Features

•Compatible with CAN specification 2.0A and B
•Fully compatible with ISO 11898-2 standard
•Jumper for 120 Ω terminal resistor
•2500Vrms photo-isolation protection on CAN side
•Jumper for 120Ω terminal resistor for CAN channel
•Software configurable CAN and RS-232 /422/485 communication parameters
•Power, data flow and error indicator for CAN and RS-232/422/485
•Web Configuration

Add to quote

£188.99

SKU: 11111754 Categories: , ,
ICP CON brand electronic module

Description

The ICP DAS I-7530A is an RS-232/422/485 to CAN converter. The CAN interface of the I-7530A-G follows ISO 11898-2 specification, the maximum CAN baud is up to 1 Mbps. As the I-7530A-G runs, it only receives the commands from one of these COM interfaces (i.e. from the RS-232, RS-485 or RS-422 interface) at the same time, but the CAN messages will be forwarded to all of these COM interfaces.





Data Sheets

I-7530A_en
