I-7531-FD-G Two-channel Isolated CAN / CAN FD Signal Repeater

Key Features

  • Supported CAN specification 2.0A/B and CAN FD
  • Fully compatible with the ISO 11898-2 standard
  • Detected CAN bus baud rate automatically, maximum support 8000 kbps
CE FCC RoHS WEEE UKCA
Add to quote

£137.50

SKU: 11111778 Categories: , ,

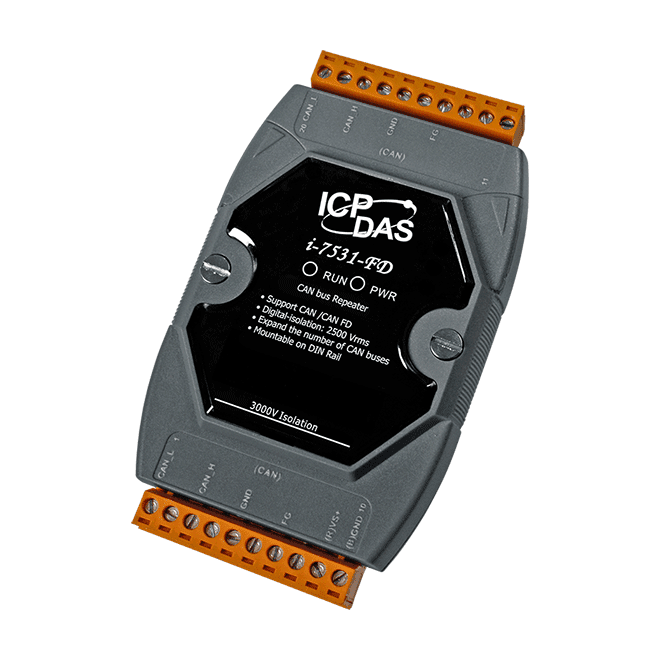

ICP DAS CAN bus repeater device

Description

The ICP DAS I-7531-FD is a CAN/CAN FD signal repeater that can connect two or more CAN networks with the same baud rate. Based on the signal repeat function of I-7531-FD, users can use different numbers of I-7531-FD to combine tree-shaped and star-shaped CAN network topology, and when there are too many devices on the CAN network, using ICP DAS I-7531-FD can increase the driving force of the CAN signal to drive more CAN devices.

In addition, the CAN side of the ICP DAS I-7531-FD has a digital isolation of 2500 Vrms, and the CAN side and the power side also provides 3000 V DC-DC isolation protection which can effectively isolate the noise interference between CAN networks ,and achieve protection the purpose of a specific CAN network.

Data Sheets

I-7531-FD-G_en
