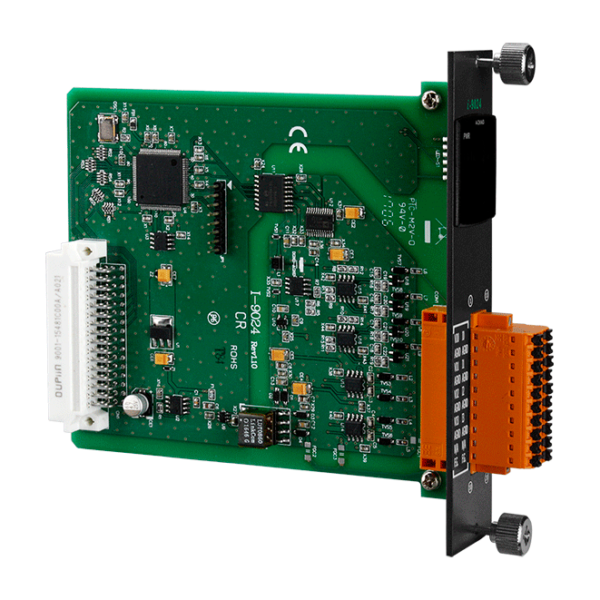

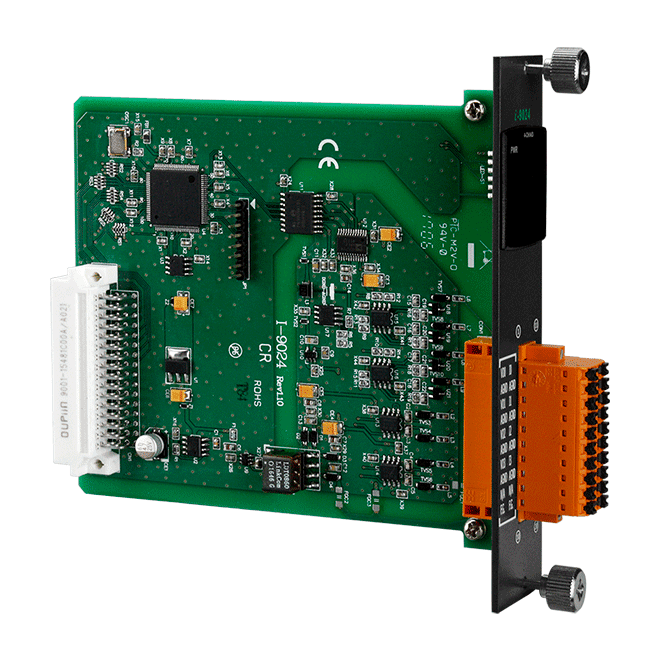

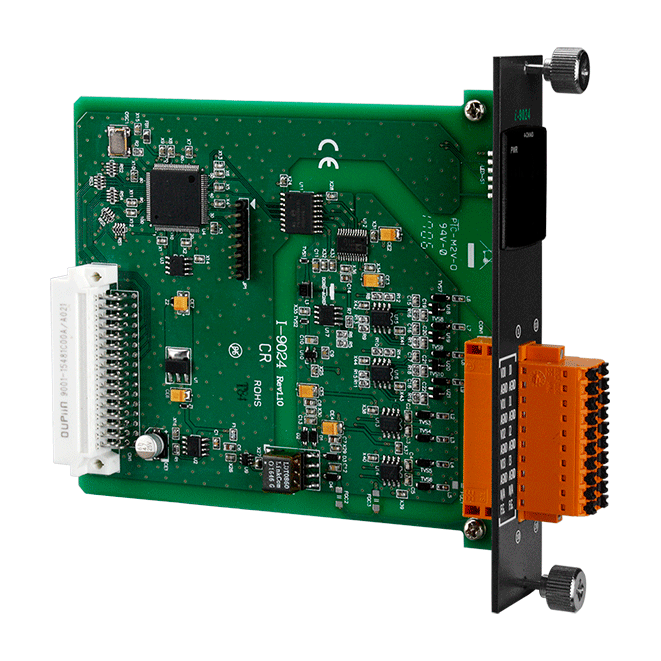

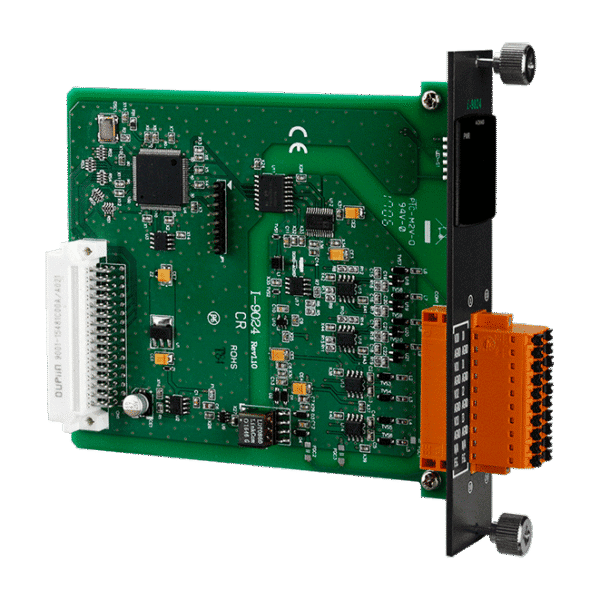

I-9024 4-ch Analog Output Module

Key Features

  • 4-channel Voltage or Current Output
  • Individual Channel Configuration
  • Short Circuit Protection
  • Open Wire Detection for Current Output
  • RF Immunity
  • 3000 Vdc intra-module isolation
  • 4 kV ESD Protection
  • Wide Operating Temperature Range: -25 to +75 °C

Add to quote

£195.00

SKU: 11111561 Categories: , ,
Electronic circuit board with connectors

Description

The ICP DAS I-9024 is a 14-bit analog output module which offers 4 single-ended analog output channels. Every channel can be programmed to an individual output range of ±10 V or 0 ~ +20 mA. The I-9024 provides RF immunity level matching that defined by IEC 61000-4-3 standard together with 4 kV ESD protection and 3000 VDC intra-module isolation.

Data Sheets

I-9024_en
