I-9054P 8-ch Isolated DI & 8-ch Isolated DO Module

Key Features

  • 8-channel Digital Input
  • 8-channel Open Collector Output
  • Sink-type Digital Output
  • Channel Status LED Indicators
  • 4 kV ESD Protection
  • 3750 VDC Intra-module Isolation
  • Wide Operating Temperature Range: -25 to +75 °C
CE RED RoHS WEEE
Add to quote

£135.00

SKU: 11112226 Categories: , ,

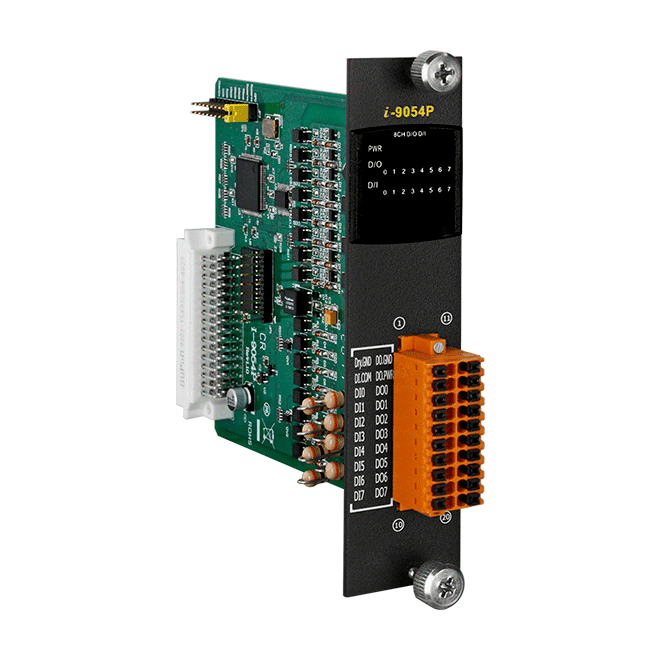

Electronic module with orange terminal block

Description

The ICP DAS I-9054P offers 8 channels for digital input, catering for both dry and wet contact, with an effective distance for dry contact of up to 500 meters and 8 digital output channels, each of which features Photocouple isolation and supports sink-type output using an open collector.

The I-9054P provides 16 LED indicators that can be used to monitor the DIO channel status. 4 kV ESD protection and 3750 VDC intramodule isolation are also provided to enhance noise immunity capabilities in industrial environments.

Data Sheets

9054p_en
