I-9057P 16-ch Isolated DO Module

Key Features

  • 16-channel Open Collector Output
  • Sink-type Digital Output
  • Channel Status LED Indicators
  • Up to 60 VDC Over-voltage Protection
  • Overload Protection
  • Short-circuit Protection
  • 4 kV ESD Protection
  •  Dual Watchdog
  • Wide Operating Temperature Range: -25 to +75 °C

Add to quote

£120.00

SKU: 11111565 Categories: , ,

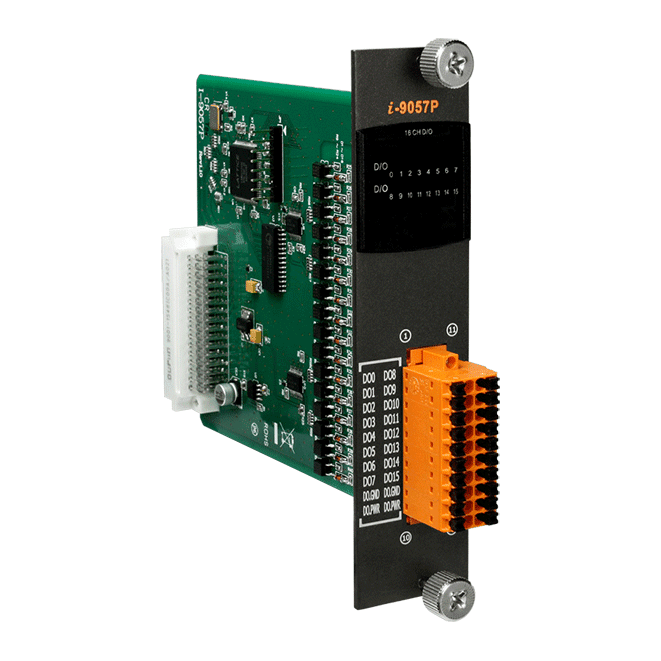

Side view of electronic circuit board

Description

The ICP DAS I-9057P module offers 16 digital output channels, each of which features Photo-couple isolation and supports sink-type output using an open collector. In addition, 16 LED indicators are included to monitor the status of digital output channels. The I-9057P integrates over-current, over-voltage and short-circuits protections for industrial use. 4 kV ESD protection and 3750 Vrms intra-module isolation are also provided as standard.

Data Sheets

I-9057P_en
