iSN-713-MRTU Three-axis vibration sensor module (RS-485)

Key Features

  • Three-axis vibration measurement
  • Frequency range: 10 Hz to 1K Hz
  • Amplitude range: ±8g
  • Data Format:

    -Acceleration(mg): RMS, Maximum, P-P

    -Velocity(mm/s): RMS

    -Top 10 spectrum values(Amplitude/Frequency)

    -Crest Factor

  • Supported Modbus RTU Slave protocol
CE FCC RoHS WEEE
Add to quote

£399.00

SKU: 11112587 Categories: , , ,

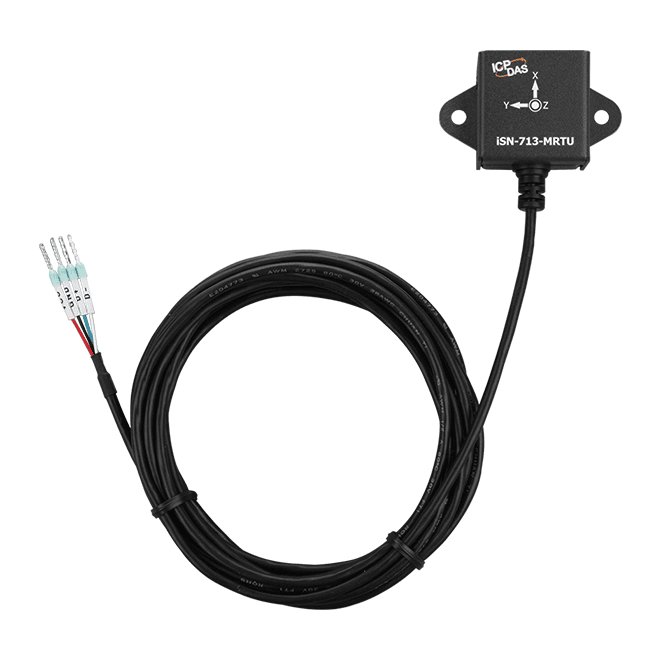

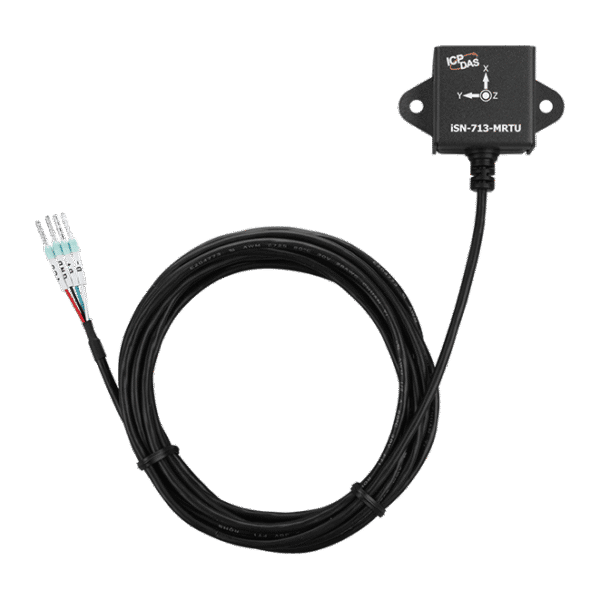

Data acquisition device with cable

Description

The ICP DAS iSN-713-MRTU module is a three-axis vibration detection device. It has a built-in MEMS accelerometer, so it can easily realize equipment vibration monitoring. The module supports one RS-485 communication interface with Modbus RTU slave protocol, the user can transmit Modbus RTU commands to read the sensor’s data by RS-485 interface.

The iSN-713-MRTU is suitable for real-time vibration detection in critical locations for factory monitoring applications, such as production line equipment, motors, and pumps, etc., where there is a need to monitor any vibration application.

Applications

  • Vibration monitoring system

Data Sheets

iSN-713-MRTU_datasheet_en
