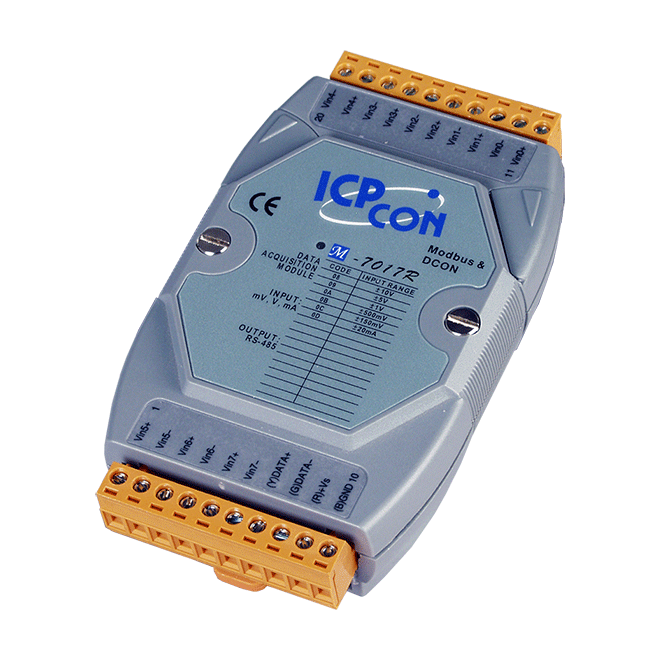

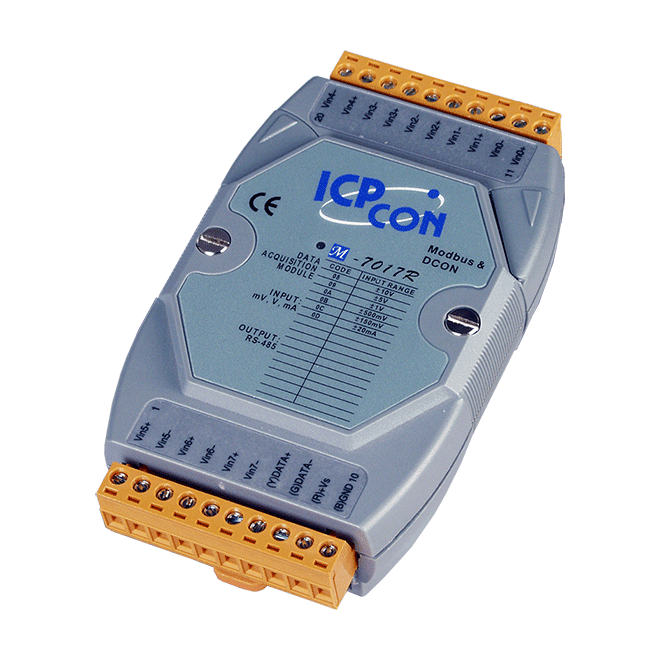

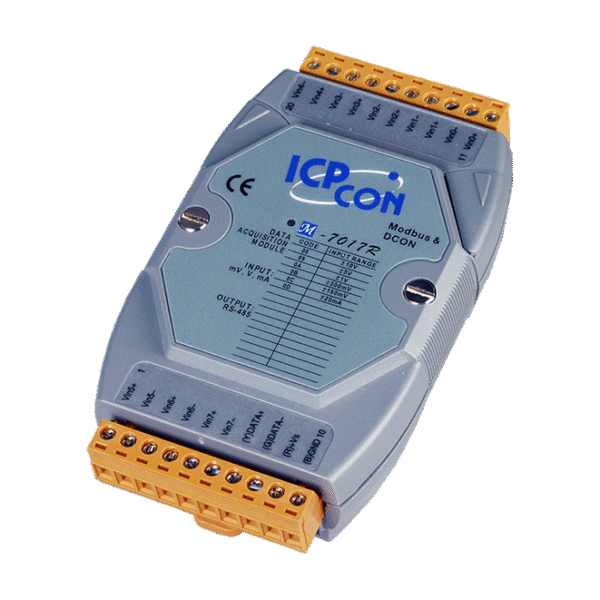

M-7017R 8-ch AI Module with High Voltage Protection

Key Features

  • Voltage and Current Inputs
  • 8-ch AI Module
  • High Over-voltage Input Protection
  • High Common Voltage Protection
  • Adjustable Sampling Rate (Fast/Normal Mode)
  • Built-in Dual Watchdog
CE UKCA FCC RoHS WEEE
Add to quote

£232.00

SKU: 11113271 Categories: , ,
ICP-CON Modbus device

Description

The ICP DAS M-7017R is an 8-channel analog input module with an extremely high-quality protection mechanism with overvoltage protection of 240 Vrms. The input type includes both voltage and current. The M-7017R is an upgraded version of the M-7017, with the only difference being that The M-7017R is much more suitable for critically harsh environments.

The sampling rate of the M-7017R is adjustable, meaning that either fast mode or normal mode can be set. The M-7017R also has 4 kV ESD protection as well as 3000 VDC intra-module isolation. The M-7017R supports Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7017R.
The M-7017R has been used and proven in applications including Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis and Testing Equipment.

Data Sheets

I-7017R(-A5)_M-7017R(-A5)_en
