M-7017R-A5-G 8-ch High Voltage (±50 V, ±150 V) AI Module with High Voltage Protection

Key Features

  • Voltage and Current Inputs
  • 8-ch AI Module
  • High Over-voltage Input Protection
  • High Common Voltage Protection
  • Adjustable Sampling Rate (Fast/Normal Mode)
  • Built-in Dual Watchdog
CE UKCA FCC RoHS WEEE
Add to quote

£259.00

SKU: 11113272 Categories: , ,

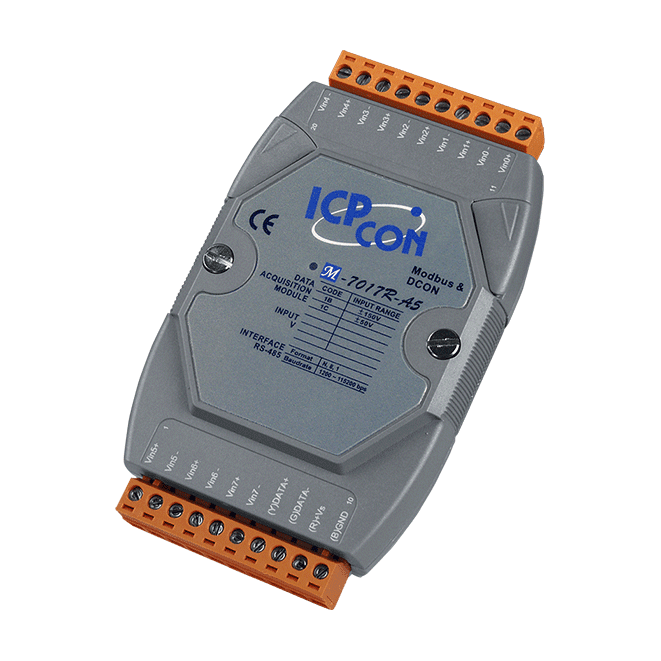

Industrial communication module with orange connectors

Description

The ICP DAS M-7017R-A5 is an 8-channel analog input module that is specially designed for high voltage input and has an input range of between -50 V ~ +50 V or -150 V ~ +150 V. The sampling rate of the M-7017R-A5 is adjustable, meaning that either fast mode or normal mode can be set. The M-7017R-A5 also has 4 kV ESD protection as well as 3000 VDC intra-module isolation. The M-7017R-A5 supports Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7017R-A5.

The M-7017R-A5 has been used and proven in applications including Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis and Testing Equipment.

Data Sheets

I-7017R(-A5)_M-7017R(-A5)_en
