M-7054D 16-ch Isolated Universal DI/DO Module (100 mA Max.)with LED Display

Key Features

  • 16 Universal Digital Inputs or Outputs
  • 100 mA Load Current per Channel
  • Digital Input Channels Can be Used as 16-bit Counters
  • Configurable Power-on Value and Safe Value Settings
CE UKCA FCC RoHS WEEE
Add to quote

£119.00

SKU: 11112664 Categories: , ,

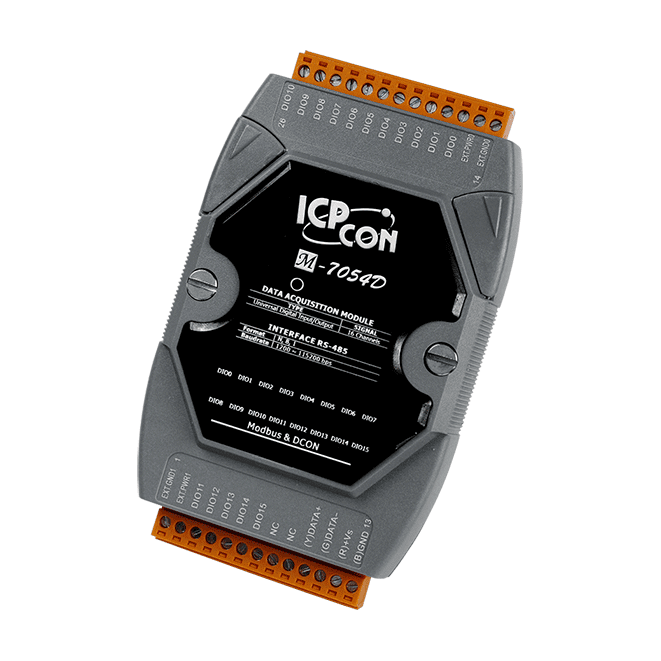

Electronic interface module with labels

Description

The ICP DAS M-7054/M-7054D provides 16 channels for universal digital input or output, which can be selected via wire connections. The digital input channels are dry contact and can be used as 16-bit counters, while the digital output channels are sink-type with short circuit protection.

The M-7054D has 16 LED indicators for channel status monitoring. The M-7054(D) supports Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. ±4 kV ESD, ±4 kV EFT, and 3750 VDC intra-module isolation are also provided to enhance noise protection capabilities in industrial environments.

Data Sheets

M-7054(D)_M-7054P(D)_en
