NSM-208PSE-24V 8-port 10/100 Mbps PoE (PSE) Ethernet Switch with +24 VDC Input with metal case

Key Features

  • Each port supports both 10/100 Mbps speed auto negotiation
  • Full duplex IEEE 802.3x and half duplex backpressure flow control
  • Auto-detection of PD (powered devices) and automatic power management
  • Over-temperature, over-current and over/under-voltage detection
  • Automatic MDI/MDI-X crossover for plug-and-play
  • Store-and-forward architecture
CE UKCA FCC RoHS WEEE
Add to quote

£299.00

SKU: 11113028 Categories: , ,
Industrial Ethernet switch with PoE ports

Description

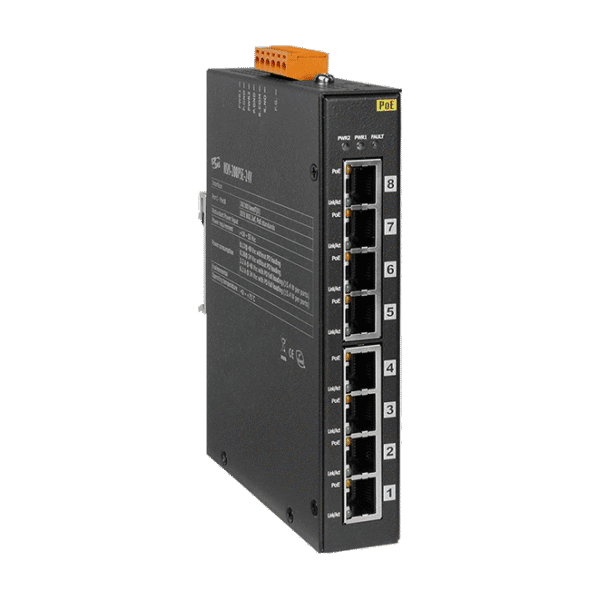

The ICP DAS NSM-208PSE-24V is a 8-port unmanaged PoE (Power over Ethernet) Industrial Ethernet switch; it supports 8 PoE ports which are classified as power source equipment (PSE).

The NSM-208PSE-24V makes centralized power supply come true and provides up to 15.4 watts of power per PSE port. Ethernet switchs are designed with +24 VDC to +48 VDC boost for PoE application where +48 VDC power supply is not available.

Data Sheets

NS-205PSE-24V_NSM-205PSE-24V_NSM-208PSE-24V_en
