ODOT DT-3238 8-channels Analog Input (4-20mA)

Features

  • Channel Number: 8 channels
  • LED Indicator: 8 LED channel State indicators
  • Input range: Maximum: 0 ~ 23.5 mA
  • Resolution: 15 Bit
  • Acquisition precision: ±0.3% full range @25℃; ±0.5% full range @-20~70℃
  • Sampling rate: 20 ms per channel
  • Data format: 16-bit signed integer
  • Operational Temperature: -40~85℃

Add to quote

£135.00

SKU: 11113390 Categories: ,

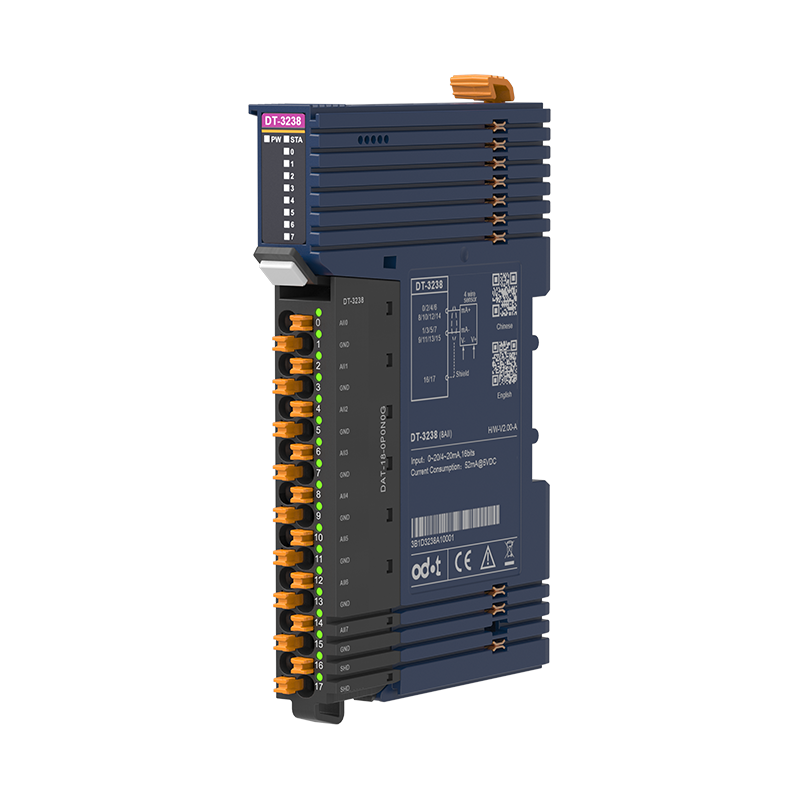

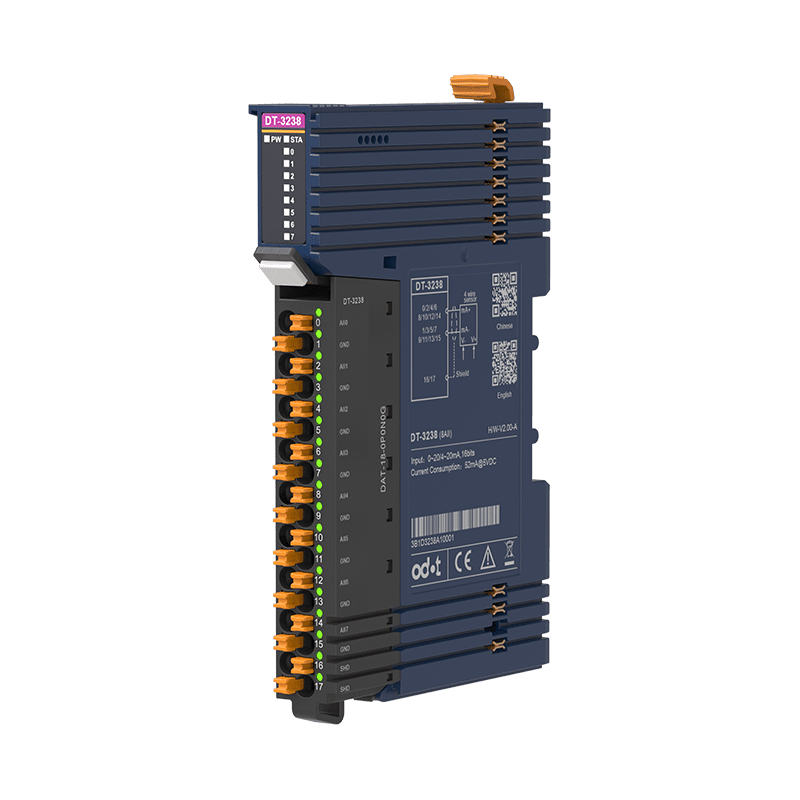

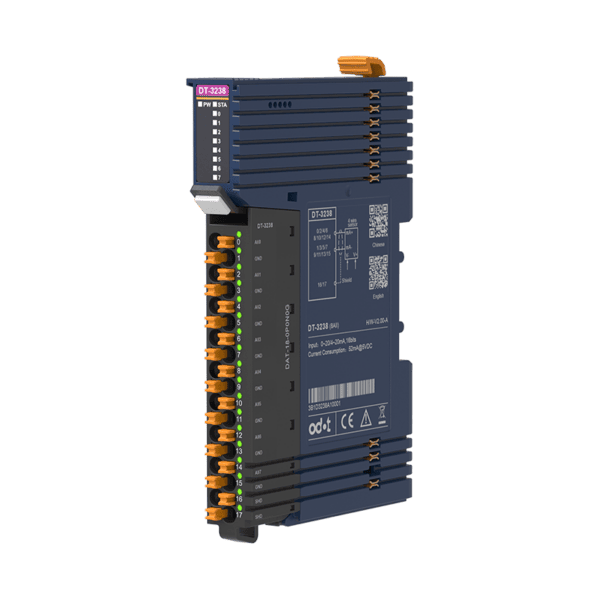

Industrial electronic module with connectors

Description

The ODOT DT-3238 is a 15-bit 8-channel analog input module that can be integrated with the ODOT Network Adapters measure 0-20mA or 4-20mA process signals. The module supports 2-wire (non-loop output, external power supply required) or 4-wire current sensor input.

The ODOT DT-3238 can be easy integrate with SCADA, PLC, PAC and PC based software systems for a wide range of industrial automation, measurement and process control applications.

Data Sheets

ODOT D-Series
