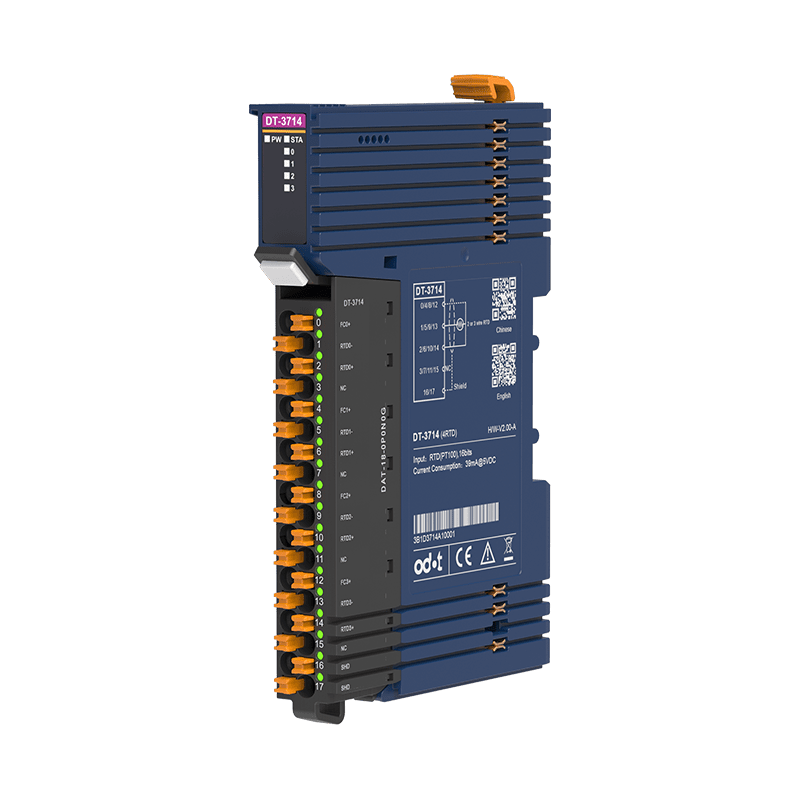

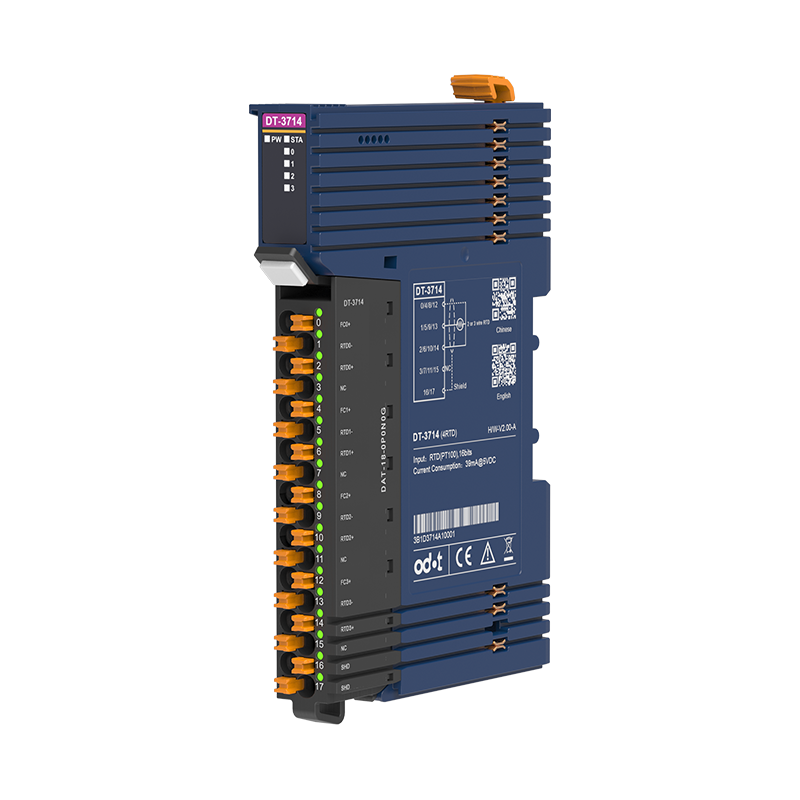

ODOT DT-3714 4-channels RTD Input Module – RTD-PT100
Features
- Channel Number: 4 channels RTD-PT100 input
- LED Indicator: 4 LED channel State indicators
- Input range: Maximum: 2-wire or 3-wire
- Resolution: 16 Bit
- Transition Time: 360ms/4 channels (filter level is 0)
- Operational Temperature: -35~60℃
£99.00
Description
The ODOT DT-3714 is a 4-channel RTD input module that can be integrated with the ODOT Network Adapters measure RTD-PT100 signals with adjustable filter level. The module support the PT-100 2-wire or 3-wire and fault detection (disconnection, short circuit, overflow, underflow, terminal state).
The ODOT DT-3714 can be easy integrate with SCADA, PLC, PAC and PC based software systems for a wide range of industrial automation, measurement and process control applications.
