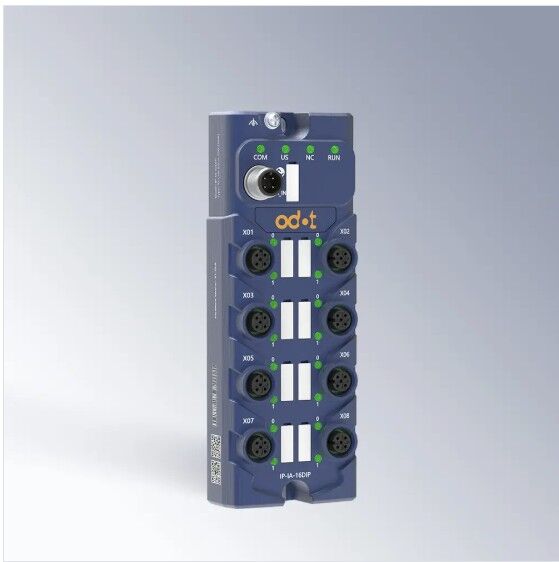

ODOT IP-IA-16DIN IO-Link Slave IP67 Module Digital Input Module NPN

ODOT IP-IA-16DIN IO-Link Slave IP67 Module Digital Input Module NPN

£82.00

Add to quote

Key Features

  • Supports IO-Link V1.1.4 standard, 8 Class A ports
  • Transfer Rate: Default – COM2 (38.4kbps)
  • 8 Ports, 16 channels digital input (M12, A-code, 5 Pin, hole end)
  • IP67 protection level
  • Power supply undervoltage/overvoltage detection
  • Built-in temperature sensor & real-time monitoring
  •  Supports automatic device identification & parameter configuration
  • Dimension: 160 mm*60 mm*35.5 mm
  • Operating Temperature: -30 ℃~60 ℃
CE UKCA FCC RoHS WEEE

Description

The ODOT IP-IA-16DIN IO-Link Slave IP67 Module Digital Input Module NPN for Industrial Signal Acquisition. Featuring 16 NPN digital input channels, configurable filter time, input holding functionality, and Data Storage support, the module provides stable and flexible field-level signal collection for modern industrial automation systems.

The ODOT IP-IA-16DIN is designed and proven in harsh industrial environments and integrate easily into modern automation networks. It has strong environmental adaptability, IP67 protection level, and metal casing, which can operate stably in harsh industrial environments such as moisture, dust, and oil stains. The module adopts a standard M12 connectors and have diagnostic functions including power and communication diagnosis.

ip-series-high-protection-remote-io-user-manual-v1-00-20260424
