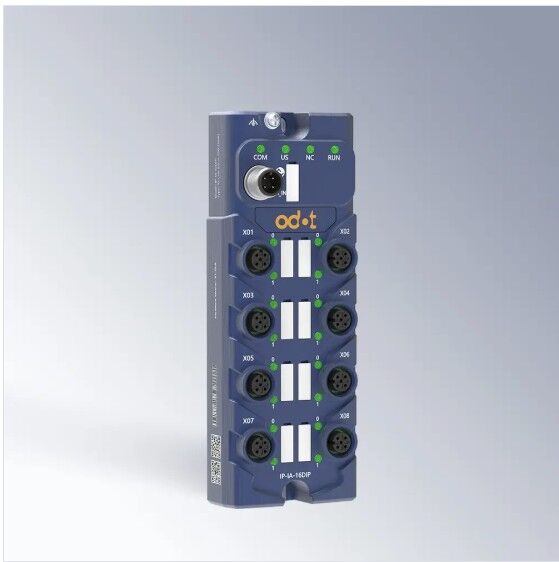

ODOT IP-IA-16DINDON 16-Channel Configurable Digital Input Output Module NPN IP67 IO-Link Slave Module

ODOT IP-IA-16DINDON 16-Channel Configurable Digital Input Output Module NPN IP67 IO-Link Slave Module

£119.00

Add to quote

Key Features

  • Supports IO-Link V1.1.4 standard, 8 Class A ports
  • Transfer Rate: Default – COM2 (38.4kbps)
  • 8 ports; each containing two DI or DO, for a total of 16 digital input or output (M12, A-code, 5 Pin, hole end)
  • IP67 protection level
  • Power supply undervoltage/overvoltage detection
  • Built-in temperature sensor & real-time monitoring
  •  Supports automatic device identification & parameter configuration
  • Dimension: 160 mm*60 mm*35.5 mm
  • Operating Temperature: -30 ℃~60 ℃
CE UKCA FCC RoHS WEEE

Description

The ODOT IP-IA-16DINDON is a flexible and reliable IO-Link slave module designed for industrial digital signal acquisition and output control applications. Featuring 16 configurable NPN digital input/output channels, the module enables users to freely configure each channel according to different automation requirements, improving system flexibility and reducing hardware complexity.

The ODOT IP-IA-16DINDON is designed and proven in harsh industrial environments and integrate easily into modern automation networks. It has strong environmental adaptability, IP67 protection level, and metal casing, which can operate stably in harsh industrial environments such as moisture, dust, and oil stains. The module adopts a standard M12 connectors and have diagnostic functions including power and communication diagnosis.

ip-series-high-protection-remote-io-user-manual-v1-00-20260424
