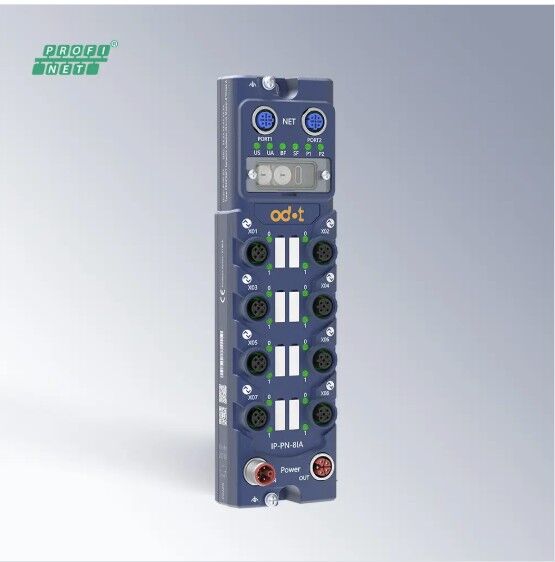

ODOT IP-PN-8IA IO-Link Series PROFINET Slave 8-Channel IO-Link Master Module

ODOT IP-PN-8IA IO-Link Series PROFINET Slave 8-Channel IO-Link Master Module

£159.00

Add to quote

Key Features

  • Seamlessly integrates with standard PROFINET IO Device protocols
  • Supports IO-Link V1.1.4 standard, 8 Class A ports
  • IP67 protection level
  • Power supply undervoltage/overvoltage detection
  • Built-in temperature sensor & real-time monitoring
  •  Supports automatic device identification & parameter configuration
  • Dimension: 214 mm*60 mm *35.5 mm
  • Operating Temperature: -30 ℃~60 ℃
CE UKCA FCC RoHS WEEE

Description

The ODOT IP-PN-8IA is a high-performance PROFINET slave and IO-Link master module designed for modern industrial automation systems. Featuring 8 Class A IO-Link master ports and support for up to 16 configurable digital input/output channels, the module provides efficient field-level communication for sensors, actuators, and intelligent devices.

The ODOT IP-PN-8IA is designed and proven in harsh industrial environments and integrate easily into modern automation networks. It has strong environmental adaptability, IP67 protection level, and metal casing, which can operate stably in harsh industrial environments such as moisture, dust, and oil stains. The module adopts a standard M12 connectors and have diagnostic functions including power and communication diagnosis.

ip-series-high-protection-remote-io-user-manual-v1-00-20260424
