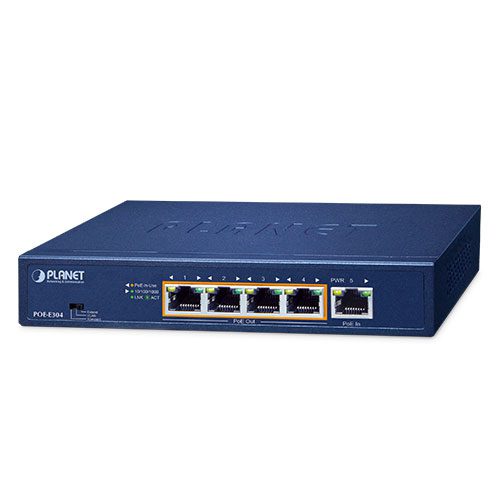

POE-E304 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender
Key Features
- Five 10/100/1000BASE-T Gigabit RJ45 interfaces
- 1-port data + power input
- 4-port data + power output
- 10/100/1000Mbps auto-negotiation & auto MDI/MDI-X
- Store-and-Forward mode with wire-speed filtering & forwarding rates
- IEEE 802.3x flow control for full duplex operation & backpressure for half duplex operation
- Integrates address look-up engine, supports 2K absolute MAC addresses
- 16K jumbo frame support
- Made of metal, desktop size design
- DIP switch for multi-operation mode options (Standard/VLAN/Extend) selection
- 0 to 50 degrees C operating temperature
- No external power cable required for installation
- Wall-mountable, Plug & Play installation
£269.00
Description
The PLANET POE-E304 is a 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender designed especially for the point to multipoint PoE application. The POE-E304 can obtain a maximum of 95-watt PoE power from IEEE 802.3bt PoE++ input port and supplies a maximum of 65-watt PoE power budget for 4 PoE output ports, extending both the reach of Gigabit Ethernet Data and IEEE 802.3af/802.3at Power over Ethernet over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to 250m where up to 4 powered devices (PDs) can be powered at the same time. The POE-E304 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.
The POE-E304 offers “Standard”, “VLAN” or “Extend” mode. The POE-E304 operates as a normal Gigabit Ethernet Switch in the “Standard” operation mode. The “VLAN” operation mode features port-based VLAN function that can help to prevent the connected clients’ multicast or broadcast storm from influencing each other.
In the “Extend” operation mode, the POE-E304 operates on a per-port basis at 10Mbps duplex operation but can transmit data over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the POE-E304 provides an additional solution for distance extension, thus saving the cost of Ethernet cable installation.
