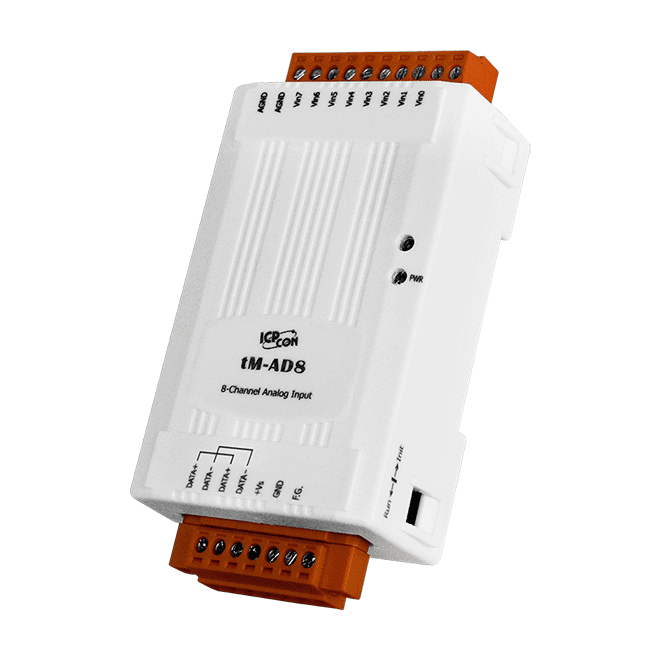

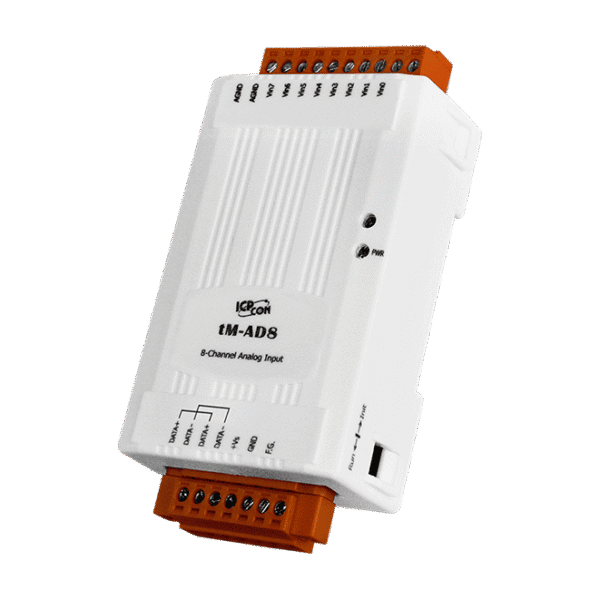

tM-AD8 8-channel Isolated Analog Input Module
Key Features
• 8-channel Single-ended Inputs
•Voltage Inputs
•120 VDC Over-voltage Protection
•Resolution: 14/12 bits
•Adjustable Sampling Rate
•2 kV ESD and 4 kV EFT Protection
•Dual Watchdog
•2500 VDC Intra-module Isolation
•Cost-effective
•Voltage Inputs
•120 VDC Over-voltage Protection
•Resolution: 14/12 bits
•Adjustable Sampling Rate
•2 kV ESD and 4 kV EFT Protection
•Dual Watchdog
•2500 VDC Intra-module Isolation
•Cost-effective
£125.50
Description
The ICP DAS tM-AD8 is an analog input module with 8 single-ended analog input channels and provides a programmable input range on all analog inputs (0 ~ 500 mV, 0 ~ 1 V, 0 ~ 2.5 V, 0 ~ 5 V, 0 ~ 10 V). The ICP DAS tM-AD8 also provides a high over-voltage protection of 120 VDC.
The sampling rate of the ICP DAS tM-AD8 is adjustable and available in either fast or normal mode and It also provides 4 KV ESD protection and 2500 Vrms intra-module isolation.
