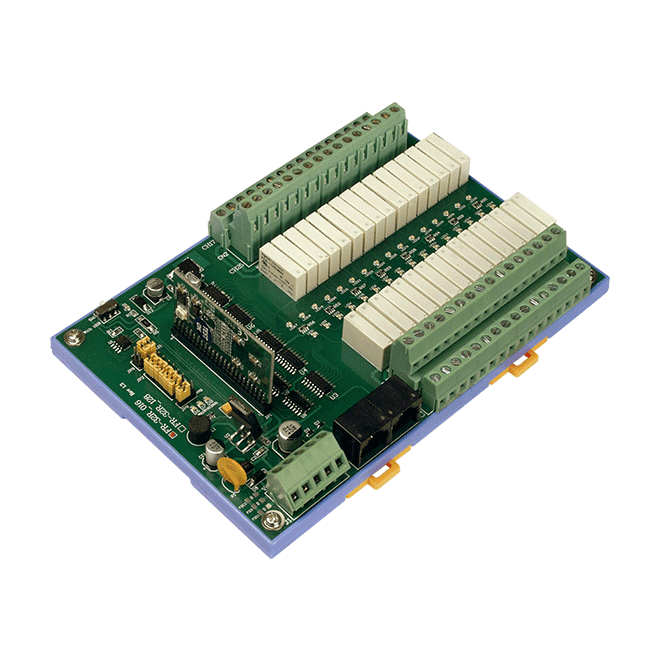

FR-32R/DIN FRnet I/O Module with 32-channel Relay

FR-32R/DIN FRnet I/O Module with 32-channel Relay

£399.00

Add to quote

Key Features

  • Built-in FRnet interface
  • Real I/O synchronization
  • Innovative token-stream technology
  • Support Broadcasting
  • Real Deterministic Control
  • Fixed Scan time: 256 points @ 2.88 ms
  • Each bank consists of 8 input channels and has its own ground reference
  • ASIC design without CPU
  • Memory-map I/O
  • No protocol and no software overhead
  • Easy Programming and OS-independent
  • Two-Wire Cabling
  • Jumper setting
  • Interface circuit
CE UKCA WEEE

Description

The ICP DAS FR-32R has 32-channel relay output. Not like traditional relay output board, the FR series I/O module has an FRnet interface.The FR I/O module can be used as a distributed remote I/O module or a MagicWire module.The user should select the correct setting when using these modules. Refer to jumper setting. The user can daisy several FRnet modules together. Via FRnet, the FRnet modules can work with PC, PAC, μPAC and PLC easily. Further information about the networking of FR-32R; refer to related literatures of I-8172W, FRB-200U.

Applications

  • Factory Automation
  • Building automation
  • Energy management
  • Agriculture automation

FR-32R_DIN_en
