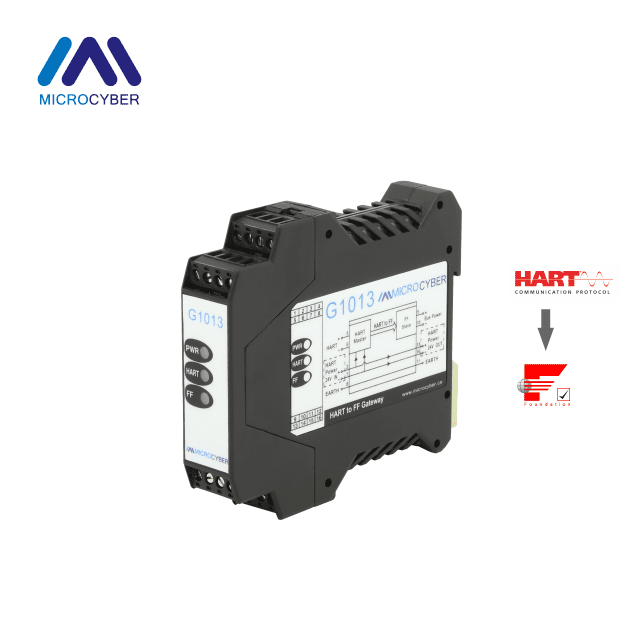

G1013 HART to Foundation Fieldbus Gateway

£579.00

Add to quote

Key Features

  • Measurement Object – HART slave device
  • HART Power – 24VDC
  • FF Bus Power – 9~32VDC
  • Bus Protocol – 2-wire, FF Protocol
  • Isolation Voltage – HART and FF bus interface, 500VAC
  • Temperature Range – -40℃~85℃
  • Humility Range – 5~95%RH
  • Start Time – ≤5s
  • Refresh Time – 0.2s
  • LED power and communication indicating
  • Standard DIN rail installation

Description

The Microcyber G1013 is a gateway device for HART protocol and FF protocol. As HART master, the G1013 HART to FF Gateway communicates with HART slave via HART interface, it can convert dynamic variables in the device to FF device variables output.

As a HART master device, the G1013 can connect HART bus device in single-point mode or multiple-point mode, it can connect four HART devices. As a FF slave device, this gateway can convert HART device dynamic data to FF function block channel data, and transfer to control system via function block output.

This HART to FF gateway dimension is 99×22.5×114.5mm and support a standard DIN rail installation. The G1013 HART to FF gateway have been widely used in the petroleum, chemical, electricity, energy and metallurgical.

Manual-G1013 HART to FF Gateway User Manual_V2.1
