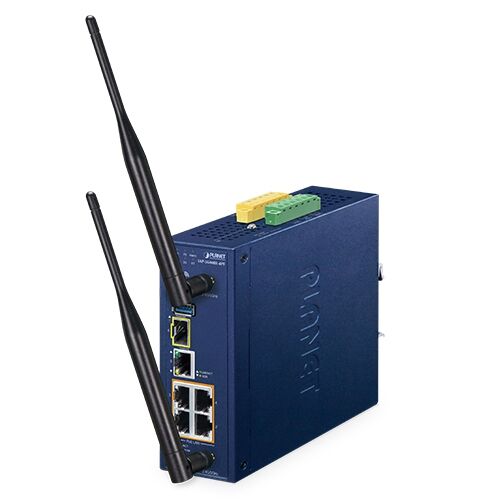

IAP-3600BE-4PF Industrial Dual Band 802.11be 3600Mbps Wireless Access Point with 4-Port 802.3at PoE+

IAP-3600BE-4PF Industrial Dual Band 802.11be 3600Mbps Wireless Access Point with 4-Port 802.3at PoE+

£699.00

Add to quote

Features

  • 4 x 10/100/1000BASE-T RJ45 LAN ports, auto-negotiation, auto MDI/MDI-X (Port 1 to Port 4)
  • 4 x 10/100/1000BASE-T RJ45 LAN ports with 4-port IEEE 802.3at PoE+ injector function
  • 1 x 10/100/1000BASE-T RJ45 WAN/LAN port, auto-negotiation, auto MDI/MDI-X (Port 5)
  • 1 x 1000BASE-X SFP interface WAN/LAN port
  • 2 x dual-band (2.4GHz/5GHz) RP-SMA connectors with antennas
  • 1 USB 3.0 port for system configuration backup/upload and firmware upgrade
  • 1 x reset button for system factory default and reboot
  • 10K jumbo frame
  • Automatic address learning and address aging
  • IP30 metal case protection
  • DIN rail or wall-mount design
  • DC 9-54V, redundant power with reverse polarity protection
  • -40 to 75 degrees C operating temperature

Description

The PLANET IAP-3600BE-4PF Industrial Dual Band 802.11be Wireless Access Point comes with 5 × 10/100/1000T LAN ports. The IAP-3600BE-4PF model features 4 × 1000T 802.3at PoE LAN ports with a total PoE budget of 120 watts, and 1 × 1GBASE-X SFP WAN/LAN slot for flexible connectivity.

Both models feature a rugged IP30-rated metal enclosure, ensuring robust performance in harsh industrial environments. Integrated with Wi-Fi 7 (802.11be) technology, the IAP-3600BE-4PF delivers exceptional wireless speeds of up to 2882 Mbps on the 5GHz band and 688 Mbps on the 2.4GHz band.

It supports advanced wireless capabilities including 4096-QAM, Multi-Link Operation (MLO), MU-MIMO, MU-OFDMA, and beamforming, enabling lower latency, greater bandwidth efficiency, and highly stable multi-user connections. Supporting up to 256 concurrent client devices, the IAP-3600BE-4PF is the ideal wireless solution for mission-critical industrial applications requiring ultra-fast, reliable, and secure connectivity.

Designed to operate in extreme environments, the IAP-3600BE-4PF supports a wide temperature range from -40 to 70 degree C, making it ideal for deployment in harsh and demanding conditions. It also features flexible installation options with both DIN rail and wall-mount support, maximizing space efficiency within industrial cabinets.
