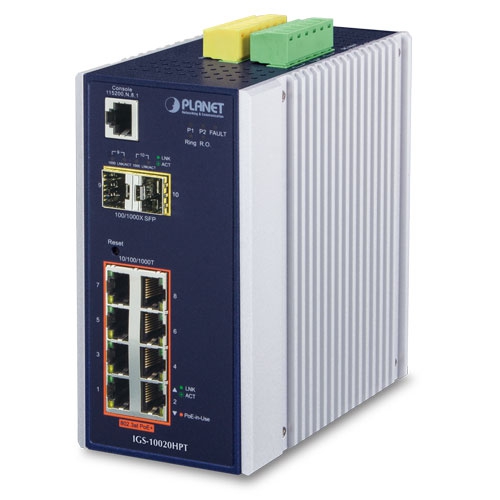

IGS-10020HPT Industrial 8-port 10/100/1000T 802.3at PoE + 2-port 1G/2.5G SFP Managed Switch

Description

The PLANET Industrial 8-port Gigabit 802.3at PoE+ Switch, IGS-10020HPT series, is equipped with a rugged IP30 metal case for stable operation in heavy industrial  environments. Thus, the IGS-10020HPT series provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets.

The IGS-10020HPT series supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments.

The IGS-10020HPT series also protects customer’s industrial network connectivity with switching recovery capability that is used for implementing fault tolerant ring and mesh network architectures. If the Industrial network was interrupted accidentally, the fault recovery times could be less than 50ms to quickly bring the network back to normal operation.

Being able to operate under wide temperature range from -40 to 75 degrees C, the IGS-10020HPT series can be placed in almost any difficult environment. The IGS-10020HPT series also allows either DIN rail or wall mounting for efficient use of cabinet space.
