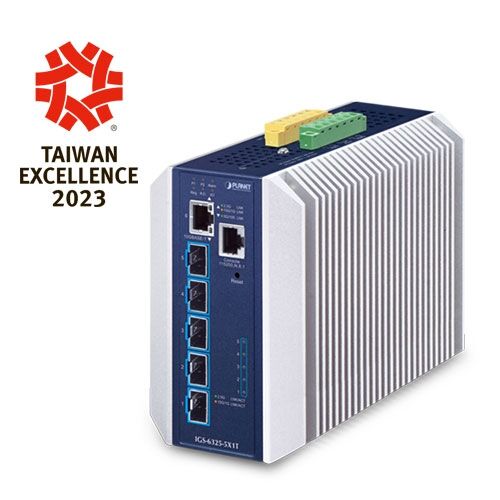

IGS-6325-5X1T Industrial Layer 3 5-Port 10GBASE-X SFP+ + 1-Port 10GBASE-T Managed Ethernet Switch

£879.00

Add to quote

Key Features

  • 1* 100/1G/2.5G/5G/10GBASE-T RJ45 copper port
  • 5* 10GBASE-SR/LR SFP+ slots, compatible with 1G/2.5GBASE-X SFP
  • One RJ45-to-RS232 console interface for basic management and setup
  • Layer 3 IP routing features
  • Quality of service
  • 2*Digital input & 2* digital output channels
  • DIN-rail and wall-mountable design
  • IP30 aluminum case
  • Supports ESD 6KV DC Ethernet protection
  • -40 to 75 degrees C operating temperature
CE FCC RoHS WEEE

Description

The PLANET IGS-6325-5X1T is an all-port 10Gbps Industrial-grade Layer 3 Managed Ethernet Switch which features 5* 10GBASE-SR/LR SFP+ ports, 1* 10GBASE-T copper port and Layer 3 IP routing in a rugged IP30 metal case for stable operation in heavy industrial environments.

With 10Gbps fiber or copper interfaces, the IGS-6325-5X1T can handle extremely large amounts of data in a secure topology linking to an industrial backbone, 5G NR base station or Wi-Fi6/6E wireless AP. The IGS-6325-5X1T is capable of providing non-blocking switch fabric and wire-speed throughput as high as 120Gbps in the temperature range from -40 to 75 degrees C. It greatly simplifies the tasks of upgrading the industrial LAN for catering to increasing bandwidth demands.

The fiber-optic 10GBASE-X SFP+ interfaces support triple speeds, 10GBASE-SR/LR, 2500BASE-X and 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The IGS-6325-5X1T provides broad bandwidth and powerful processing capacity.

The IGS-6325-5X1T enables the administrator to conveniently boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically.
