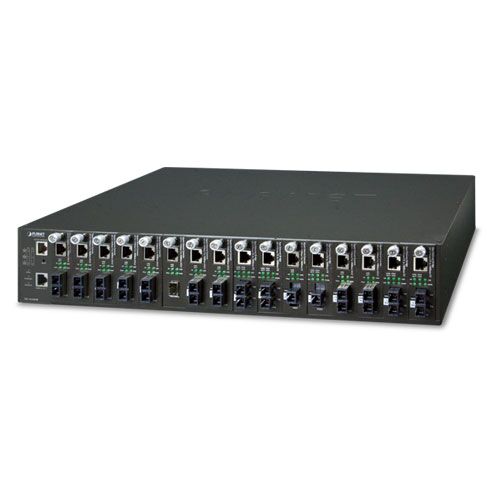

MC-1610MR 16-slot Managed Media Converter Chassis (AC power)

£519.00

Add to quote

Key Features

  • High-quality 19″ rack-mountable chassis installation
  • Supports up to 16-slot hot-swappable slide-in modules
  • Supports PLANET Fast Ethernet/Gigabit Ethernet/10G Ethernet Smart Media Converter series – FST-80x, GST-80x & XST-705A
  • Two power slots on rear panel for redundant power support with options of 100~240V AC or -48V DC supplies
  • Bay power isolation ensures each bay is electrically isolated from each other
  • Up to two fans provided for better air-flow for system cooling
  • One 10/100/1000Mbps Gigabit Ethernet port & one RS232 to RJ45 console port for management
  • Supports auto-MDI/MDI-X for 10/100/1000BASE-T port
  • LED indicators for system, power & fan status
  • Configurable through console, Web & SNMP
  • Provides SNMP status of converters with trap functions for any chassis & connectivity event
  • Provides media Link/Connection speed duplex status for each module
  • Redundant backup (Media Converter Link Redundancy)
  • Reduces the effort of converter’s maintenance & management
CE FCC RoHS WEEE

Description

For powerfully advanced fiber-optic function and cost-effective solution, PLANET Managed Media Converter Chassis series, MC-1610MR and MC-1610MR48, provides 16 media converter slots and one management system in a 19-inch rack chassis. The MC-1610MR series is designed for FTTx applications for ISPs, telecoms, campuses and enterprises.

The MC-1610MR series can easily build an FTTx infrastructure that perfectly meets your demands. The 16 slots are suitable for PLANET Fast/Gigabit Ethernet Smart Media Converters, such as the existing FST-80x, newly-designed GST-80x and brand-new XST-705A. It facilitates faster big data transmission,  ultra-high bandwidth with the requirement of 10Gigabit Ethernet, and more for the next-generation networks of data centre cloud computing, enterprise backbones, campuses, and carriers.

The PLANET MC-1610MR series can flexibly deliver an FTTH (Fiber to the Home), FTTB (Fiber to the Building) or FTTC (Fiber to the Curb) network solution for ISPs, enterprises and campuses where the demands for reliable and efficient network performance and installation budget are highly concerned.

The management function provided by the MC-1610MR series enables network administrators to monitor Media Converter connection status and configure the Converter remotely via Web browser or locally via an RS232 to RJ45 console port. Through the management interface, the entire status of the converters such as link on/off or statistics of the port will be clearly demonstrated and monitored. The MC-1610MR series is ideal for telecom and corporate applications where a number of fiber links need to be managed and controlled from a central location.

The MC-1610MR series allows the connection of up to 16 PLANET Smart Fast/Gigabit Ethernet Converters in one chassis. With an independent power supply on each slot of the MC-1610MR series, any converter is hot-swappable without causing an interruption to other converters. Each bay of the Media Converter Chassis can be populated with PLANET’s Smart Media Converters. PLANET FST-80x and GST-80x Smart Media Converter series provides media conversion between copper and FX, and SX and LX optical models for distance from 220m and to 120km.

With PLANET complete Smart Media converter products, the MC-1610MR series is an efficient, cost-effective and scalable solution for any large-scale networks.

C-MC-1610MRv2_s
