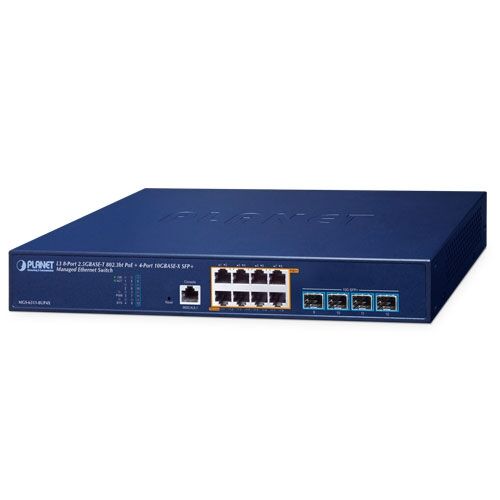

MGS-6311-8UP4X L3 8-Port 2.5GBASE-T 802.3bt PoE + 4-Port 10GBASE-X SFP+ Managed Ethernet Switch

MGS-6311-8UP4X L3 8-Port 2.5GBASE-T 802.3bt PoE + 4-Port 10GBASE-X SFP+ Managed Ethernet Switch

£229.00

Add to quote

Key Features

  • 8 10/100/1000/2500BASE-T ports with 95W 802.3bt PoE++ injector function
  • 4 10GBASE-SR/LR SFP+ slots, compatible with 1G/2.5G BASE-SX/LX/BX SFP
  • RJ45 to DB9 console interface for switch basic management and setup
  • DIN-rail and wall-mountable design
  • IP30 aluminium case
  • Supports ESD 6KV DC Ethernet protection
  • 0 to 50 degrees C operating temperature
CE FCC RoHS WEEE

Description

The PLANET MGS-6311-8UP4X is a brand-new Layer 3 managed multigigabit switch providing 2.5Gbps data over UTP cables, designed for the demand of high-bandwidth required network equipment, such as Wi-Fi 7 (802.11be) wireless APs, NAS, workstation and those with 2.5GBASE-T interfaces.

It features 8 10/100/1000/2500BASE-T copper ports supporting 802.3bt PoE++ injector function, a total PoE power budget of up to 240 watts and 4 extra 1G/2.5G/10GBASE-X SFP+ fiber ports that are flexibly designed to extend the connection distance.

The MGS-6311-8UP4X provides high-density performance, Layer 3 dynamic routing – RIP (Routing Information Protocol) and OSPF (Open Shortest Path First) and VRRP (Virtual Router Redundancy Protocol).

With 2.5Gbps copper interfaces and 10Gbps fiber-optical interfaces, it can handle extremely large amounts of data in a secure topology linking to an enterprise backbone or high-capacity servers. The powerful network security features make the MGS-6311-8UP4X perform effective data traffic control for ISP and enterprise Wi-Fi, video streaming, and multicast applications.

C-MGS-6311 Series_v1.1_L
