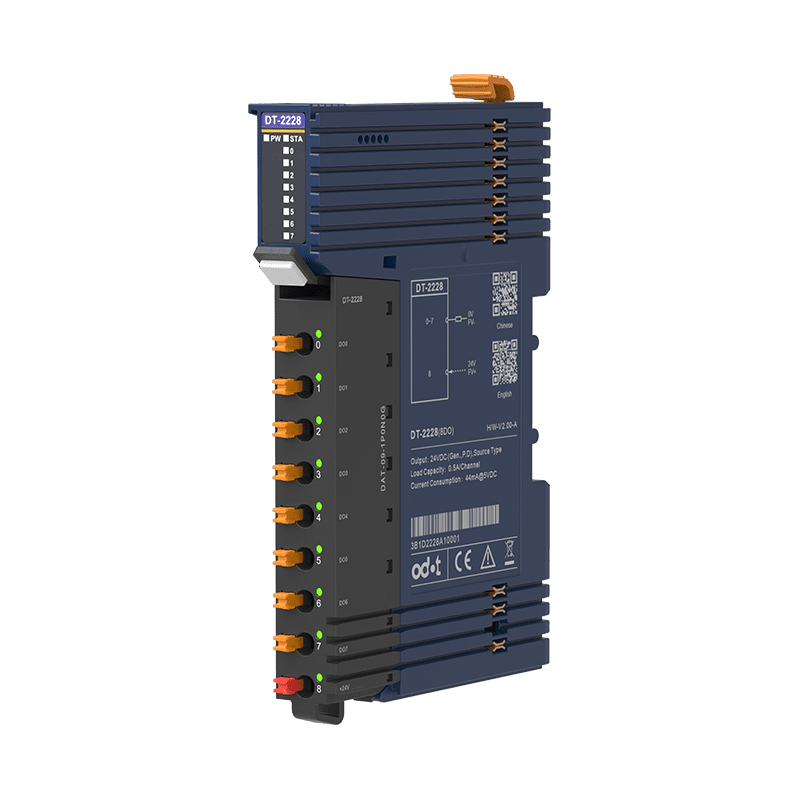

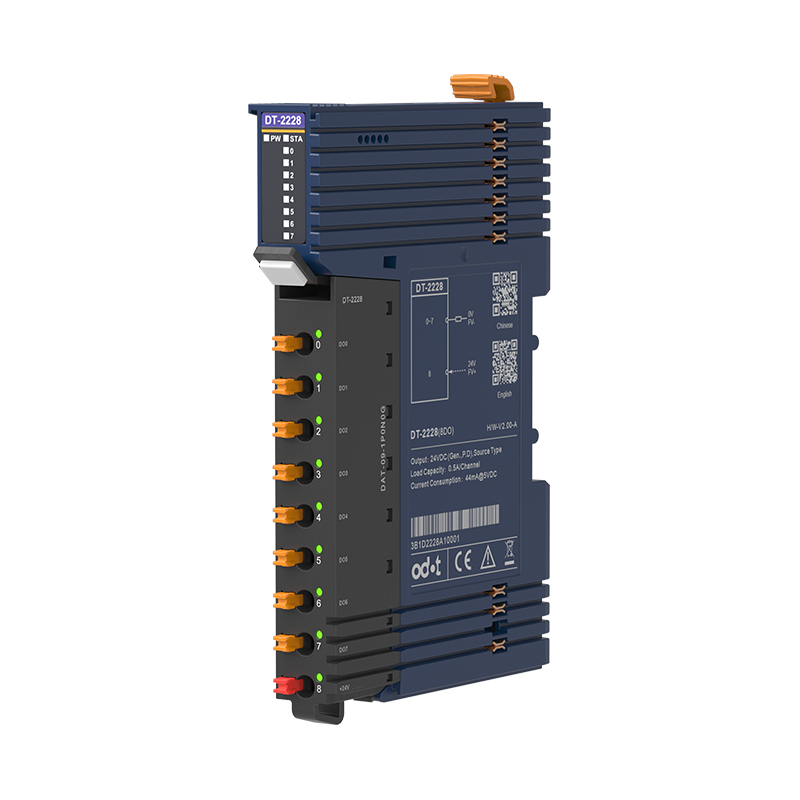

ODOT DT-2228 8-channels Digital Output/24VDC/Source type

ODOT DT-2228 8-channels Digital Output/24VDC/Source type

£54.00

Add to quote

Features

  • Channel Number：8 channel digital output/24VDC/ Sink type
  • LED Indicator: 8 output LED Indicators
  • Rated current: Typical value: 500mA
  • Leakage current: 10uA Max
  • Output impedance：<280mΩ
  • Protection Over-temperature shutdown: typical value 135℃
  • Over-current protection: typical value 1.1A
  • Short circuit protection support

Description

The ODOT DT-2228 is an I/O expansion module that supports 8-channel digital output, output high level effective, and output voltage 24V and can be integrated with the ODOT Network Adapters. This module could drive field equipment (relay, solenoid valve, etc.).

The ODOT DT-2228 can be easy integrate with SCADA, PLC, PAC and PC based software systems for a wide range of industrial automation, measurement and process control applications.
