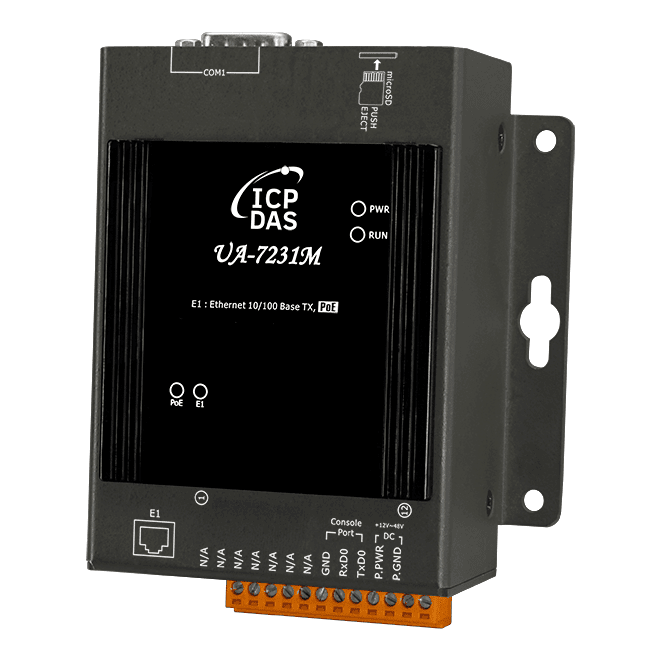

UA-7231M IIoT Communication Server with 1*PoE Ethernet port & 1*serial port (Metal Case)

£699.00

Add to quote

Key Features

  • Simultaneous Writing for Remote Database and Local Data Logger
  • Offline Data Recovery Mechanism for Remote Database
  • Support to Enable OPC UA and MQTT at the Same Time
  • MQTT Broker (Including WebSocket)
  • Support a Complete Information Protection Mechanism
    – HTTPS, Communication Encryption, Block List
  • IoT Cloud Platform Connection
    – Microsoft Azure, Amazon Web Services, IBM Bluemix, Alibaba Cloud
  • IFTTT Logic Control Triggers the APP Notification Function
  • PID Logic Operation Function
CE UKCA FCC RoHS WEEE

Description

The ICP DAS UA-7231M is the new additional to the UA series IIoT cloud solution which features compact size, high-cost performance, and PoE power supply, making it ideal for installation in small or difficult-to-configure power supply environments.

This IIoT gateway allows users to access the remote I/O modules and controllers via Modbus TCP/ RTU/ASCII, MQTT, and EtherNet/IP communication protocols, and can also convert these I/O data to OPC UA or MQTT protocols to enable easy integration with MES, ERP, SCADA and Cloud services.

The UA-7231M also have a data logging function that allows users to write the I/O data directly into the remote database and save to the local file as the historical records.

This compact IIoT gateway support Cloud platform for connecting with Amazon AWS, Microsoft Azure or other Cloud platforms to send over the I/O data, and support Cloud logic service platform “IFTTT” for connecting with many web APPs that allows users to receive first-hand notification messages via the most used mobile APPs when an event triggered.

The UA-7231M enhances the networking and interoperability between IT and OT and enable users to easily deploy them in Industrial IoT applications.
