XST-705A 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Smart Media Converter (for use with MC-1610MR / MC-1610MR48 only)
£189.00
Key Features
- One 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function
- One 10GBASE-X SFP+ slot
- IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
- Supports auto-negotiation and 100Mbps half/full duplex and 1/2.5/5/10Gbps full duplex mode
- Prevents packet loss with back pressure (half-duplex) & IEEE 802.3x pause frame flow control (full-duplex)
- 16K jumbo frame size support
- Automatic address learning and address aging
- External 5V DC, 2A power supply
- Wall-mount design
- Supports 6000 VDC Ethernet ESD protection
- 100 meters over Cat. 6A / Cat. 7 at 10Gbps
- 0 to 50 degrees C operating temperature
- Plug and Play installation
![CE](https://www.icpdas.com/upload/product/pro_icon_20200916041030_0.jpg)
![FCC](https://www.icpdas.com/upload/product/pro_icon_20200916041116_0.jpg)
![RoHS](https://www.icpdas.com/upload/product/pro_icon_20200916041409_0.jpg)
![WEEE](https://www.icpdas.com/upload/product/pro_icon_20200916041418_0.jpg)
Description

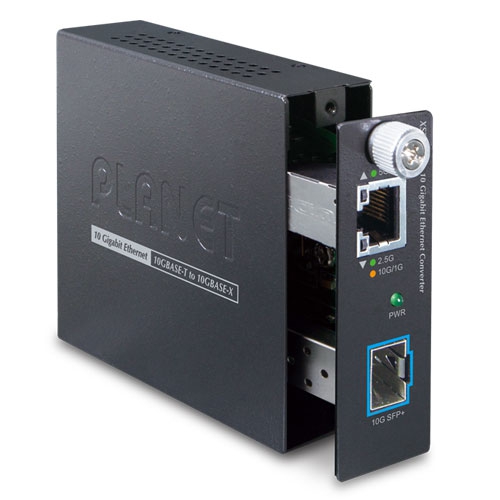

The PLANET XST-705A Smart Media Converter is equipped with one 10G/5G/2.5G/1G/100BASE-T auto-negotiation port and one 10GBASE-X SFP+ slot. It supports 10Gigabit Ethernet media conversion from copper 10GBASE-T to fiber multi-mode or single-mode, utilizing 10GBASE-SR or 10GBASE-LR SFP+ transceiver installed in the SFP+ slot to extend distances to servers, switches and patch panels.
The deployment distance can be extended from 300 meters (multi-mode) to up to 60 kilometres (single-mode).They are designed for use in network environments where the ultra-high bandwidth provided by 10Gigabit Ethernet is required, for example, data centre cloud computing, enterprise backbones, campus networks, and carrier infrastructure.
The XST-705A Smart Media Converter can be used as a stand-alone unit or as a slide-in module to the PLANET 19-inch Managed Media Converter Chassis series (MC-1610MR / MC-1610MR48). When working with Managed media converter chassis, the chassis can assist in providing DC power to the XST-705A and can be managed. Its port status such as link on/off can be monitored through the local RS232 console or remote web interface. Installing multiple XST-705As in the MC-1610MR is ideal for telecom and corporate applications where a number of 10Gbps fiber links need to be managed and controlled from a central location.
