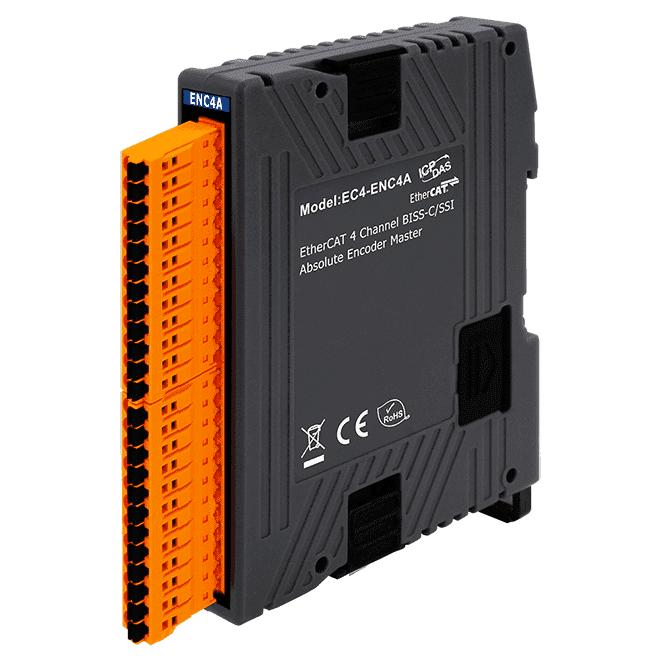

EC4-ENC4A EtherCAT SubDevice Slim Module with 4-ch BISS-C/SSI Absolute Encoder Interface

EC4-ENC4A EtherCAT SubDevice Slim Module with 4-ch BISS-C/SSI Absolute Encoder Interface

£399.00

Add to quote

Key Features

  • On the fly processing: EtherCAT
  • 4 channels, 48-bit absolute encoder Master
  • Transmission interface: SSI, BiSS-C (unidirectional)
  • Data encoding mode : Binary, Gray
  • CRC generator polynomial can be customized, and the maximum setting is within CRC-8
  • Support CRC bit Invert
  • Maximum transmission pulse frequency : 10MHz
  • Simultaneous sampling of each channel
  • Supports Free-Run and Distributed Clock (DC) operation modes
CE UKCA FCC RoHS WEEE

Description

The ICP DAS The EtherCAT SubDevice EC4-ENC4A is an absolute encoder Master stations that provides four channels. Each channel is independent of each other. It supports two serial transmission interfaces: SSI (Serial Synchronous Interface) and BiSS-C (BiSS Continuous Mode, unidirectional).

The EC4-ENC4A also supports a maximum transmission frequency of 10MHz, a maximum transmission bit of 48bit(Including error bit, warning bit, CRC in BiSS-C mode), and Automatic compensation of cable delays in BiSS-C mode. The maximum cable length supported is 70 meters.

Applications

Applications

• Automated Test Equipment
• Surveillance Systems
• Labeling Machinery
• Packaging
• Semiconductor Manufacturing
• Engraving Machine
• Automatic Feeding Machine

EC4-ENC2A_ENC4A_en
