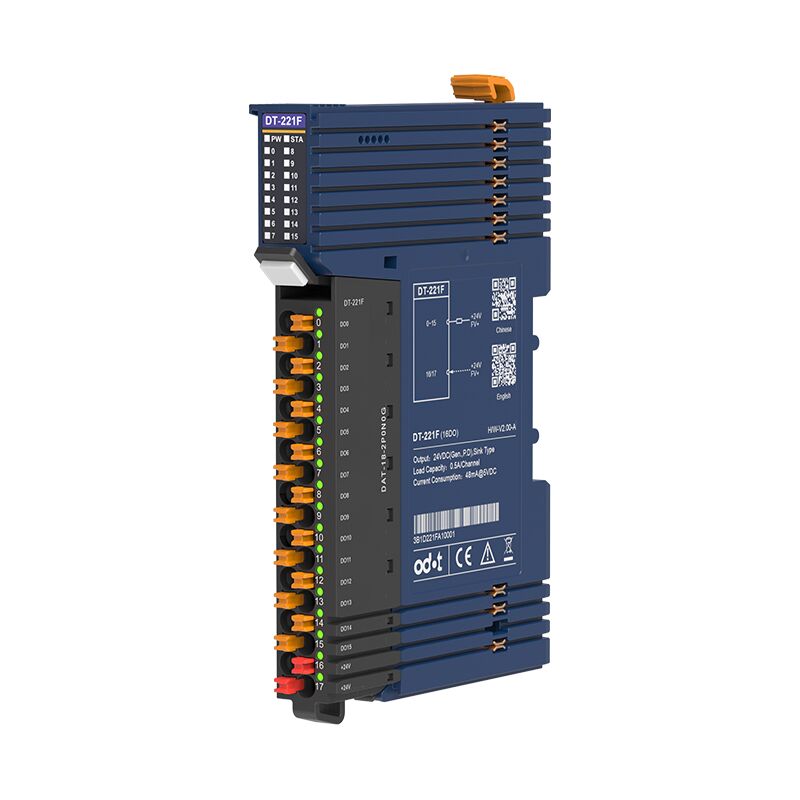

ODOT DT-221F 16-channels Digital Output/24VDC/Sink type

Name: ODOT DT-221F 16-channels Digital Output/24VDC/Sink type
Brand: simple
Availability: InStock

£58.00

Add to quote

Features

Channel Number：16 channel digital output/24VDC/ Sink type
LED Indicator: 16 output LED Indicators
Rated current：Typical value: 500mA
Leakage current: 10uA Max
Output impedance：<200mΩ
Protection Over-temperature shutdown: typical value 160℃
Over-current protection: typical value 1.8A
Short circuit protection support

Description
Datasheets

Description

The ODOT DT-221F is an I/O expansion module that supports 16 channels digital (sink) output with 24 VDC voltage output and can be integrated with the ODOT Network Adapters.

The ODOT DT-221F can be easy integrate with SCADA, PLC, PAC and PC based software systems for a wide range of industrial automation, measurement and process control applications.

ODOT D-Series
