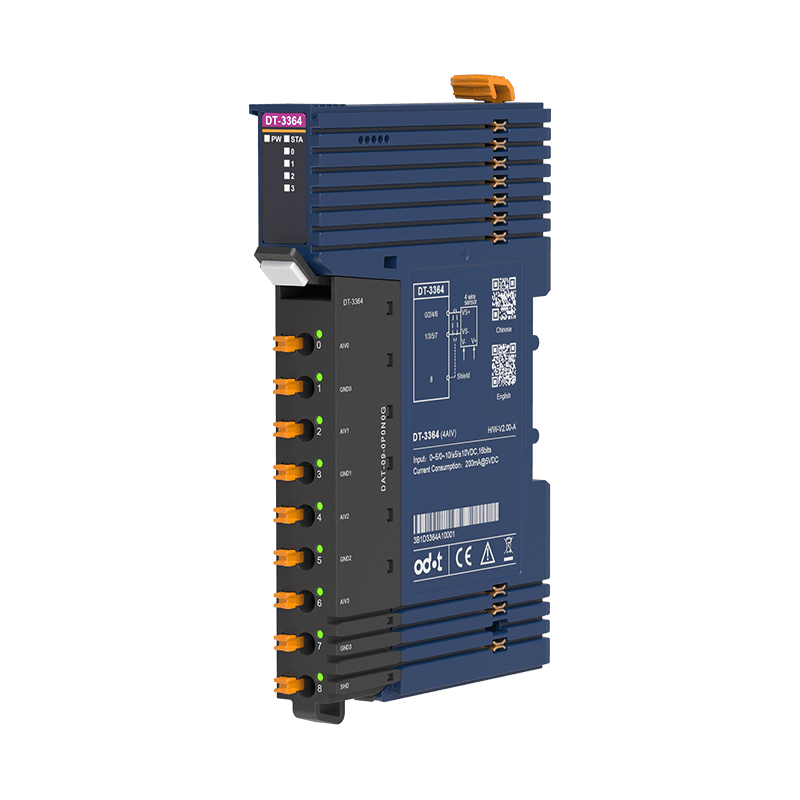

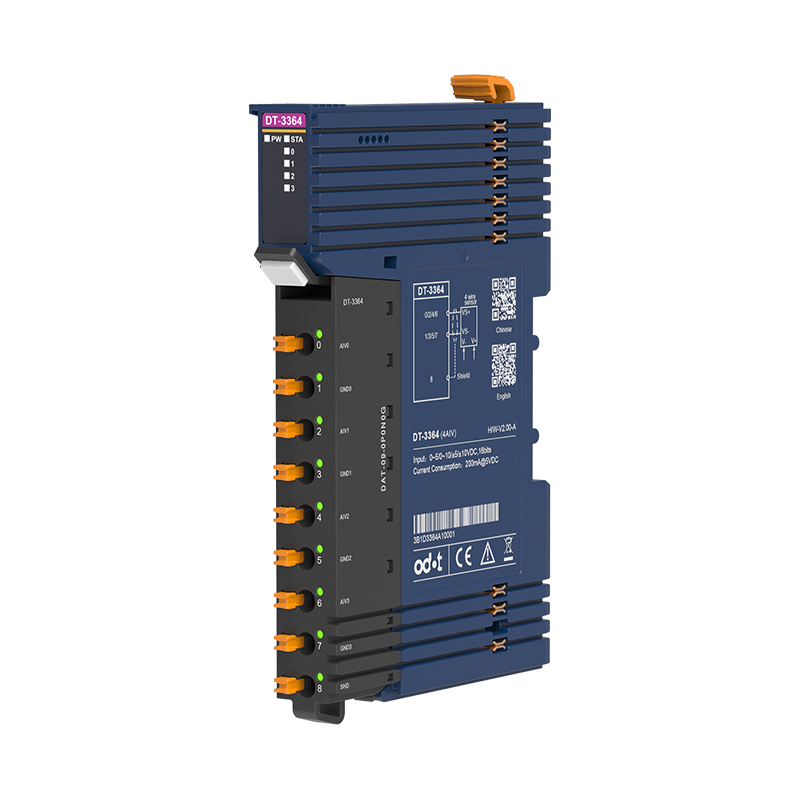

ODOT DT-3364 4-channels Voltage Input Module (0~5VDC/0~10VDC/±5VDC/± 10VDC) with 16 bits Resolution

ODOT DT-3364 4-channels Voltage Input Module (0~5VDC/0~10VDC/±5VDC/± 10VDC) with 16 bits Resolution

£189.00

Add to quote

Features

  • Channel Number：4 Channels
  • LED Indicator：4 Input LED Indicators
  • Input Voltage Range：0~5VDC、0~10VDC、±5VDC、±10VDC
  • Resolution: 16 Bit
  • Accuracy: ±0.3%@25℃; ±0.5@-40~85
  • Output Impedance: 1MΩ
  • Common Terminal: Common Grounding Input

Description

The ODOT DT-3364 is a 16-bit resolution 4 channel voltage input module that can be integrated with the ODOT Network Adapters to measure voltage inputs such as 0~5VDC/0~10VDC/±5VDC/±10VDC. This module is equipped with 4 analog input channel LED indicators and the input signals are single ended common grounding input.

The ODOT DT-3364 can be easy integrate with SCADA, PLC, PAC and PC based software systems for a wide range of industrial automation, measurement and process control applications.

ODOT D-Series
