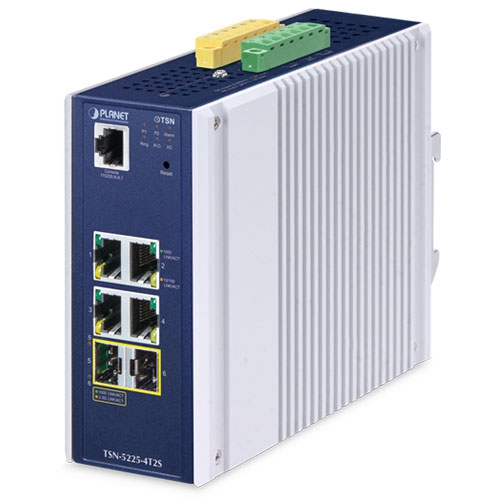

TSN-5225-4T2S Industrial L2+ 4-Port 10/100/1000T + 2-Port 1G/2.5G SFP Managed TSN Ethernet Switch

Description

The PLANET TSN-5225-4T2S is an Industrial-grade Layer 2+ Time-Sensitive Networking (TSN) Managed Ethernet Switch which features 4 10/100/1000BASE-T RJ45 ports and 2 1G/2.5GBASE-X SFP ports in a rugged IP30 metal case for stable operation in heavy environments, address all levels of the industrial automation network, from the field bus to the factory backbone. And it guarantees end-to-end transmission of high-priority traffic with extremely low latency. With 2 dual-speed SFP fiber slots, it can be flexibly applied to extend the connection distance.

The TSN-5225-4T2S can be installed in any difficult environment as it can operate stably under the temperature range from -40 to 75 degrees C. It also allows either DIN-rail or wall mounting for efficient use of cabinet space.

The PLANET TSN-5225-4T2S provides real-time, low-latency network communication for industrial automation, 5G NR networks, Industry 4.0, 4K/8K video streaming, and VR/AR gaming industry by using the Time-sensitive Networking (TSN) technology and IEEE 1588 Precision Time Protocol (PTPv2) for time synchronization on all ports.

The TSN-5225-4T2S supports TSN IEEE standards needed for a complete real-time communication solution. These include IEEE 802.1AS-REV profile for time synchronization, IEEE 802.1Qbv for Enhancements for Scheduled Traffic, IEEE 802.1Qbu Frame Preemption, IEEE 802.3br Interspersing Express Traffic (IET), IEEE 802.1Qci for per-stream filtering and policing (PSFP) and IEEE 802.1CB frame replication and elimination for reliability (FRER) for seamless redundancy.

The TSN-5225-4T2S eliminates the need for separating information technology (IT) and operational technology (OT) Ethernet networks, providing a more ubiquitous approach to synchronization and precision timing for today’s industrial automation systems.
