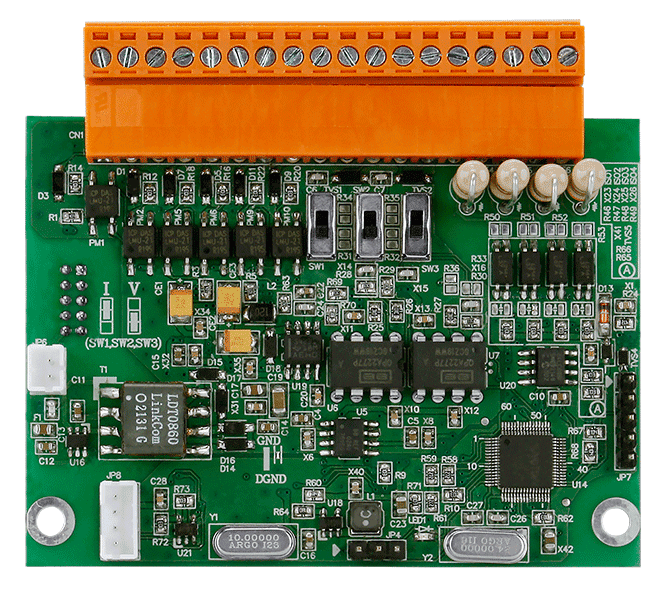

XV315 3-ch RTD Input, 3-ch AO and 4-ch DI(Wet) Expansion Board

XV315 3-ch RTD Input, 3-ch AO and 4-ch DI(Wet) Expansion Board

£199.00

Add to quote

Key Features

  • Multifunction (3RTD, 3AO, 4DI)
  • 3-channel RTD Input
  • 3-wire RTD Input with Lead Resistance Elimination
  • RTD Inputs Supports Individual Channel Configuration
  • RTD Inputs Supports “Open Wire Detection”
  • Switch Selectable Voltage or Current Output
  • 4-channel Digital Input channels
CE UKCA RoHS WEEE

Description

The ICP DAS XV315 is a 3-channels RTD input, 3-channels analog output, 4-channels digital input modules that are used for measuring temperatures using RTD sensors and each channel can be connected to a different type of sensor.

It is specifically designed for long-distance RTD measurement, and features automatic compensation for three wire RTD, meaning that accurate measurements can be obtained regardless of the length of the wires. It provides a programmable output range on all analog output channels ( 0~10 VDC, 0 ~+20 mA or +4 ~ +20 mA ).
The XV315 provides 4 channels for digital input, each of which features photocoupler isolation. Either sink- or source-type inputs can be selected via wire connections, and all channels can be used as 32-bit counters.

It is fully RoHS-compliant and features 4 kV ESD protection as well as 2000 VDC intra-module isolation are also provided to enhance noise immunity capabilities in industrial environments.
