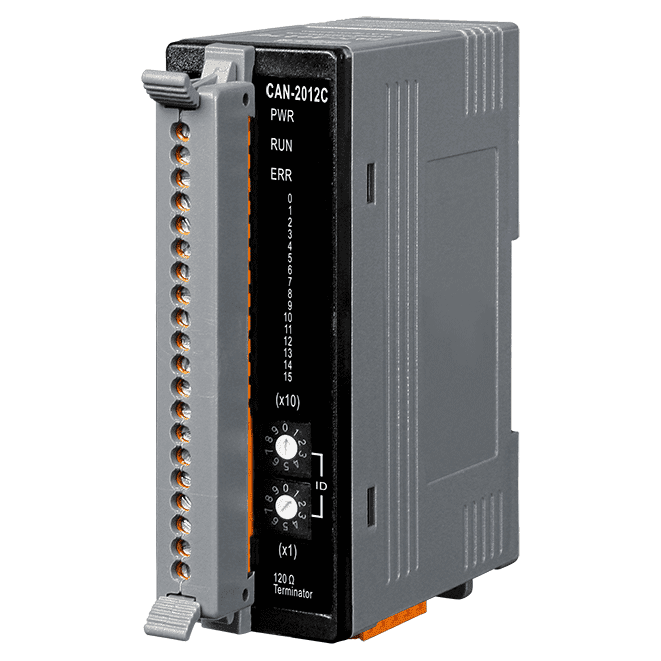

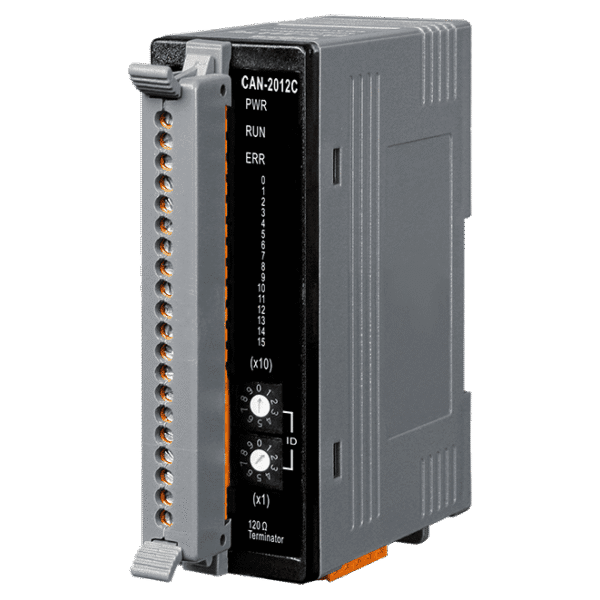

CAN-2012C CANopen Slave Module with 16bit,16ch Analog Input

CAN-2012C CANopen Slave Module with 16bit,16ch Analog Input

£399.00

Add to quote

Key Features

  • NMT Slave
  • Provide Pair-Connect function
  • Provide default EDS file
  • ESD Protection 4KV Contact for each channel
  • Support Power supply 10 ~30 VDC
  • Support CiA-301 v4.02, CiA-401 v2.1
  • 8 Differential or 16 Single-ended

CE UKCA FCC RoHS WEEE

Description

CANopen is one kind of the network protocols based on the CAN bus and mainly used for embedded network of machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipment control, remote data acquisition, environmental monitoring, and packaging machines control.

The ICP DAS CAN-2012C module complies with the CiA-301 4.02 and CiA-401 2.1 specifications and has been verified by the CiA CANopen compatibility test tool. Therefore, users can easily use CAN-2012C and its EDS files on standard CANopen master software. CAN-2012C has 16-bit, 8-channel differential input or 16-channel single-ended input. Can be applied to many different types of architectures. By using a CANopen master from ICP DAS or other manufacturers, users can efficiently build a CANopen network system.

Applications

CAN-2015C_en
