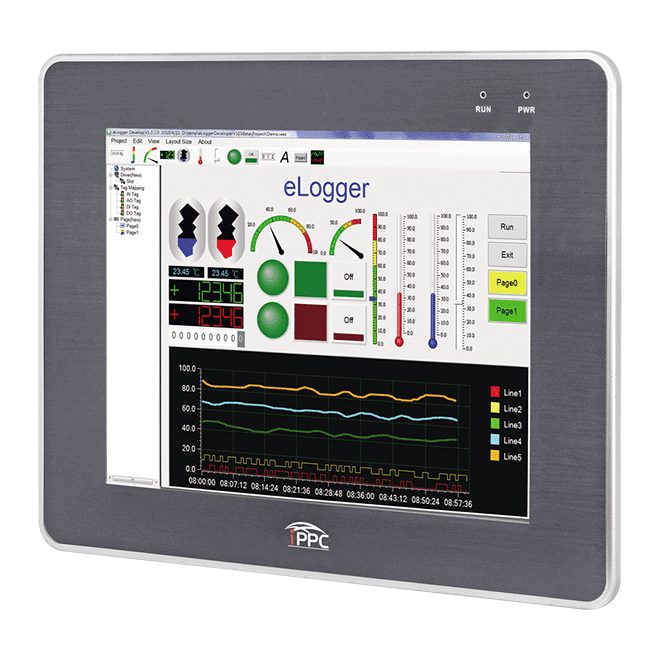

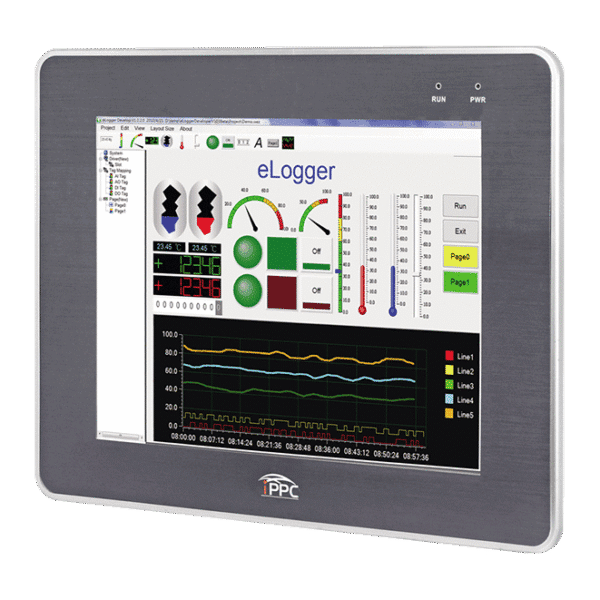

iPPC-4801-IoT 10.4″ Panel PC with Atom E3845 CPU and Win10 IoT

Add to quote

Key Features

• Windows 10 IoT Enterprise Inside
• Intel® Atom™ E3845 1.91 GHz
• 10.4″ TFT LCD with Touch Panel
• Rich software support
• Various Memory and Storage
‣ 4 GB DDR3 SDRAM
‣ 16 KB EEPROM and 128 KB MRAM for data retention
‣ 128 GB SSD
‣ 32 GB CF Card
• Various Communication Interfaces
‣ 1 x RJ-45, 10/100/1000 BASE-TX Ethernet Port
‣ 2 x Serial Ports (RS-232/RS-422/RS-485)
‣ 2 x USB 2.0 (host)
• 64-bit Hardware Serial Number for Software Protection
• Redundant Power Input
CE UKCA RoHS WEEE

Description

The ICP DAS iPPC-4801-IoT series is Windows 10 IoT Enterprise based Panel PC that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual iPPC. It is equipped with an Intel Atom E3845 CPU,TFT LCD and a variety of connectives including dual Gigabit Ethernet, USB port, RS-232 and RS-485 interface. The operating system is pre-installed in the built-in mSATA SSD, and the storage can be expanded from a Compact Flash slot. Remote I/O expansion is available to use our Ethernet I/O modules and RS-485 I/O modules.

The iPPC-4801-IoT is designed for panel mount installation, the front panel is NEMA 4/IP65 rated and can withstand sprayed water, humidity and extreme dust and operating over a wide -20°C ~ 60°C ambient temperature range, the fanless design offers the ultimate in reliability with no moving parts.
