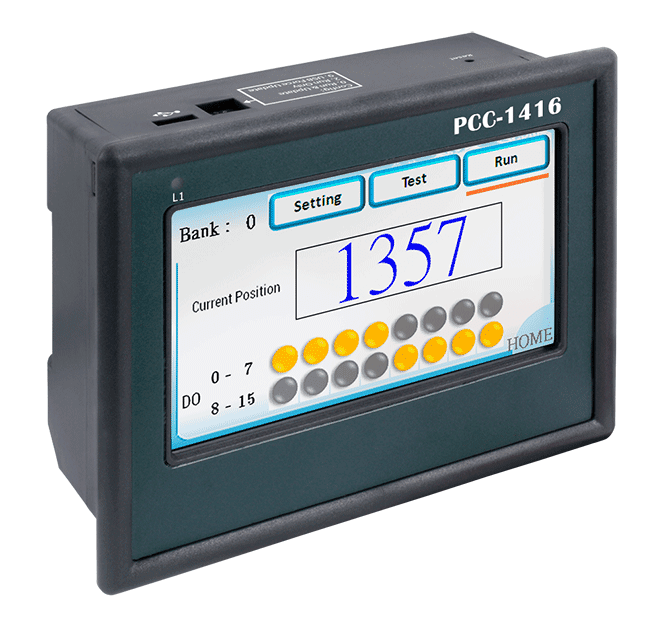

PCC-1416 4.3″ Touch HMI Device, Electronic CAM Controller

Description

The ICP DAS PCC-1416 electronic CAM controller uses digital signal processing technology to replace the traditional mechanical CAM system, thereby eliminating mechanical noise, preventing component wear, and achieving higher speed and more precise operation. Its digital settings allow operational parameters to be easily modified, overcoming the issues of difficult-to-adjust metal CAM blades. This controller plays an important role in the field of automation and machine control, particularly in applications requiring precise timing control, such as automatic lathes, textile machines, printing presses, testing equipment, assembly lines, packaging systems, and more.

The PCC-1416 supports Binary Code and Gray Code and can be used with absolute encoders. Its resolution can reach up to 12 bits (4096 or 0.08°), enabling finer and more stable operation, ensuring that the product meets stringent specifications, and significantly enhancing quality and consistency.

The controller provides 8 banks (program), each of which can support up to 32 area settings. Each area setting allows for the configuration of ON/OFF angle or position parameters and can be assigned to one CAM output channel. Users can quickly switch to the bank based on different production needs, enabling multi-functionality and enhancing the flexibility and efficiency of the production line.

The PCC-1416 provides a Start Input pin, which must be grounded before allowing the module’s DO (CAM) channels to output, to prevent abnormal output during machine testing and adjustment. It can also as an emergency stop switch, enabling on-site personnel to quickly control the system and reduce workplace safety risks.
